Understanding Press-Fit Technology
What Is Press-Fit Technology?
Press-fit technology is a solderless connection method used to create reliable electrical and mechanical connections between electronic components and printed circuit boards (PCBs).
Traditionally, PCB contact termination often relies on soldering, either manually with a soldering iron or automatically through wave soldering or other soldering processes. Press-fit technology provides an alternative by allowing individual contacts, terminals, or complete connector assemblies to be mechanically pressed into properly dimensioned plated-through holes in the PCB.
During insertion, the press-fit section of the terminal undergoes controlled elastic deformation. The restoring force generated by this deformation creates continuous contact pressure between the terminal and the metallized wall of the PCB hole.
This interference fit forms a strong, gas-tight electrical connection without requiring solder.
In practical terms, the PCB plated-through hole acts as a rigid socket, while the compliant press-fit pin adapts to the hole during insertion. Once installed, the resulting contact maintains stable electrical conductivity and mechanical retention throughout the life of the assembly.
Press-fit connections can be installed on one or both sides of a PCB, providing considerable flexibility for through-hole, SMT, and mixed-technology PCB assemblies.
As modern electronic modules become smaller and component density continues to increase, press-fit technology can also help designers create compact interconnect systems while protecting nearby heat-sensitive components.
How Does a Press-Fit Connection Work?
A press-fit connector contains terminals with specially designed press-fit zones.
During assembly, these terminals are inserted into plated-through holes in the PCB using controlled mechanical force.
As the press-fit section enters the hole:
· The compliant section deforms elastically.
· The terminal applies pressure against the metallized hole wall.
· The restoring force maintains continuous electrical contact.
· A gas-tight interface is formed between the terminal and PCB.
· Electrical current can pass directly between the terminal and plated-through hole.
Unlike solder joints, the connection does not depend on molten solder, flux, or an additional heating cycle.
This direct-contact interface provides stable electrical conductivity as well as effective thermal transfer between the connector and PCB.
What Are the Benefits of Press-Fit Technology?
Press-fit technology offers several important advantages compared with conventional soldered PCB connections.
Reduced Thermal Stress
One of the most significant advantages is the elimination of soldering heat during connector installation.
Wave soldering, reflow processes, or secondary soldering operations can introduce significant thermal stress to:
· PCBs
· Connectors
· Sensitive electronic components
· Nearby solder joints
· Temperature-sensitive materials
Press-fit assembly relies only on mechanical insertion force, eliminating the additional heat cycle.
This can be especially valuable when secondary connections must be added after heat-sensitive components have already been mounted to the PCB.
High Reliability
Press-fit connections provide stable electrical and mechanical performance even under demanding operating conditions.
Properly designed compliant press-fit interfaces can withstand:
· Vibration
· Mechanical shock
· Thermal cycling
· Temperature fluctuations
· Different thermal expansion rates between board materials
· Long-term industrial operation
Because the connection is mechanically maintained through elastic contact force rather than solder formation, it also avoids several common solder-related failure mechanisms.
These include:
· Dry solder joints
· Solder cracking
· Insufficient solder
· Poor wetting
· Voids
· Other solder formation defects
High Repeatability
Press-fit technology is highly suitable for controlled and automated manufacturing.
When PCB hole dimensions, press-fit zones, insertion forces, and process parameters are properly controlled, manufacturers can achieve highly repeatable connections across large production volumes.
Automated press-fit equipment can monitor parameters such as:
· Insertion force
· Insertion distance
· Component position
· Pressing speed
Force-monitoring systems can also help verify whether a component has been correctly inserted.
This makes the press-fit process more measurable and verifiable than many manual soldering operations.
Strong, Solder-Free Connections
Press-fit technology creates direct mechanical and electrical contact between the connector terminal and plated-through PCB hole.
This provides:
· Strong mechanical retention
· Stable electrical conductivity
· Reliable contact pressure
· Consistent interface performance
· Long service life
Because solder is not required, manufacturers can also reduce dependence on solder materials, fluxes, and associated process steps.
Excellent Electrical and Thermal Performance
Press-fit connections provide direct metal-to-metal contact between terminals and the plated-through hole structure.
This can deliver excellent electrical conductivity and thermal transfer characteristics.
The technology is therefore suitable for both signal and power applications.
Certain press-fit designs also provide high current-carrying capability, making them attractive for:
· Power electronics
· Automotive systems
· Industrial equipment
· Servers
· Power distribution systems
· High-current PCB assemblies
Improved Thermal Compatibility
Automotive electronics and servers are two important markets where press-fit technology is widely used.
Both environments can generate substantial amounts of heat.
Automotive electronics may operate inside hot engine compartments or enclosed electrical modules, while servers and data center equipment often experience continuous thermal loads.
Press-fit interfaces can help dissipate heat through the direct-contact connection while avoiding the additional thermal cycle required by soldering.
The technology can also tolerate thermal cycling because compliant contact zones can accommodate small dimensional changes caused by different coefficients of thermal expansion between PCB materials, terminals, and surrounding components.
Flexibility in PCB Design
Press-fit connections can support a wide variety of PCB configurations.
They may be used:
· On one side of a PCB
· On both sides of a PCB
· With through-hole components
· Alongside SMT assemblies
· In high-density connector layouts
· With different PCB thicknesses
· In modular electronic designs
This flexibility makes press-fit technology suitable for both compact electronic products and large industrial systems.
Easier Repair and Replacement
Press-fit connectors can often be removed and replaced more easily than permanently soldered components.
This can simplify:
· Maintenance
· Repair
· Connector replacement
· Module servicing
· Product upgrades
Depending on the connector and PCB design, damaged connector assemblies may therefore be serviced without extensive desoldering operations.
Environmental and Manufacturing Advantages
The elimination of solder during connector installation can reduce the materials and process steps associated with soldering.
Press-fit technology may eliminate or reduce the need for:
· Solder
· Flux
· Soldering equipment
· Thermal processing
· Cleaning operations associated with certain soldering processes
Automated press-fit assembly can also provide consistent production quality and potentially reduce manufacturing costs when used in sufficiently high volumes.
These advantages have encouraged many manufacturers to adopt press-fit technology in new electronic products and to redesign existing solder-based assemblies using press-fit connections.
Different Types of Press-Fit Interfaces
There are two primary categories of press-fit contacts.
Rigid or Solid Press-Fit Contacts
Rigid press-fit terminals use a relatively solid contact structure that is forced into the PCB hole.
These designs can provide a simple and economical solution for certain low-cost applications.
However, because the contact itself has limited compliance, insertion forces may place greater mechanical stress on the plated-through hole.
Potential disadvantages include:
· Greater risk of PCB hole deformation
· Possible damage to plated-through-hole structures
· Increased sensitivity to dimensional tolerances
· Lower tolerance to vibration and thermal movement
For applications requiring high long-term reliability, rigid press-fit connections may therefore be less suitable than compliant designs.
Compliant Press-Fit Contacts
Compliant press-fit contacts contain an elastically deformable press-fit section.
As the terminal enters the plated-through hole, this section compresses and adapts to the hole dimensions.
After insertion, the elastic restoring force maintains consistent contact pressure.
Key advantages include:
· Reduced stress on the PCB
· Gas-tight electrical contact
· Better tolerance compensation
· Strong mechanical retention
· Improved resistance to vibration
· Better thermal cycling performance
· Longer expected service life
For these reasons, compliant press-fit technology is widely used in demanding automotive, industrial, telecom, server, and power electronics applications.
Understanding the Press-Fit Installation Process
Press-fit components can generally be installed using two approaches.
Manual Press-Fit Insertion
Manual insertion can be suitable for:
· Prototyping
· Engineering samples
· Low-volume production
· Repair operations
· Specialized components
The operator positions the component and applies controlled insertion force using suitable tooling or a press.
However, manual assembly can become less practical when production volume increases or when connectors contain many pins.

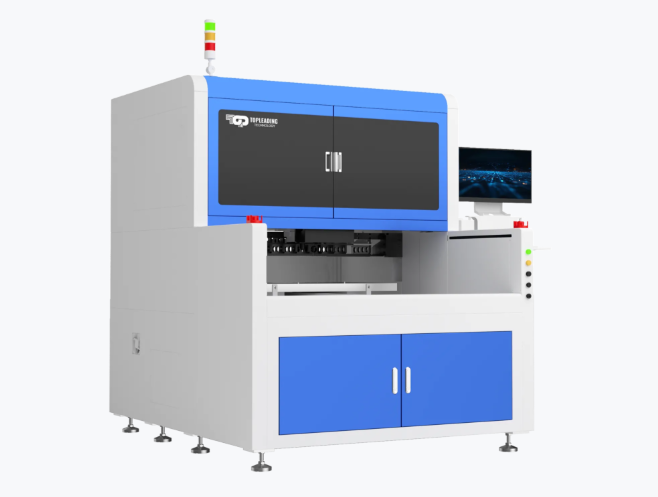

Automated Press-Fit Insertion
Automated press-fit assembly is generally preferred for medium- and high-volume manufacturing because it offers higher consistency and repeatability.
Automated systems can control and monitor:
· Component alignment
· Insertion speed
· Press force
· Insertion depth
· Travel distance
· Final component position
Force-displacement monitoring can also be integrated into the assembly process.
By comparing the actual force profile against predefined process limits, manufacturers can identify issues such as:
· Misaligned terminals
· Incorrect PCB holes
· Damaged pins
· Incomplete insertion
· Excessive insertion force
· Component seating problems
Press-fit installation parameters should also follow the relevant requirements and recommendations established for solderless electrical connections and connector systems.
Why Press-Fit Technology Is Increasingly Used in Modern Electronics
Several factors are driving the growing adoption of press-fit technology.
These include:
· Elimination of dry joints, cracking, and other solder-related defects
· Strong and repeatable solder-free interfaces
· Verifiable assembly using force-monitoring systems
· Automated assembly capability
· Direct-contact electrical interfaces
· Excellent electrical conductivity
· Effective thermal transfer
· Resistance to thermal cycling
· Accommodation of different material expansion rates
· High current-carrying capability
· Reduced thermal exposure during PCB assembly
· Easier connector servicing and replacement
For products exposed to heat, vibration, mechanical stress, or high electrical loads, these characteristics can provide significant advantages over conventional soldered connections.
Applications of Press-Fit Technology
Press-fit connections are increasingly found in electronic systems requiring high reliability and consistent manufacturing quality.
Common applications include:
Automotive Electronics
Press-fit technology is widely used in automotive electrical and electronic systems because vehicles experience:
· Continuous vibration
· Temperature changes
· High under-hood temperatures
· Long service-life requirements
· Increasing electrical power demands
Possible applications include control modules, power distribution systems, vehicle ECUs, power electronics, and electrical connector assemblies.
Servers and Data Center Equipment
Servers generate considerable amounts of heat and often operate continuously.
Press-fit connections provide reliable electrical interfaces without introducing additional soldering heat during assembly.
Their direct-contact characteristics can also support efficient electrical and thermal performance in high-density server hardware.
Industrial Electronics
Industrial equipment frequently operates under vibration, temperature variation, dust, and demanding duty cycles.
Press-fit technology can support robust interconnections in:
· Automation equipment
· Industrial control systems
· Power supplies
· Drives
· Communication equipment
· Industrial computers
Power Electronics
The high current-carrying capability available from properly designed press-fit terminals makes the technology suitable for power applications.
Typical examples include:
· Power modules
· Power distribution boards
· Inverters
· Converters
· Charging equipment
· Energy systems
Telecommunications and Networking Equipment
High-density PCB assemblies used in communications infrastructure also benefit from solderless, repeatable connector installation.
Press-fit interfaces can support large connector arrays and modular system architectures while reducing additional thermal processing.
Press-Fit Technology and Modern PCB Manufacturing
The growing demand for smaller, more powerful, and more reliable electronic systems is increasing the importance of advanced interconnection technologies.
Press-fit technology offers manufacturers a strong alternative to conventional soldered connector assembly by combining reliable electrical contact with controlled mechanical installation.
Its key strengths include solder-free assembly, reduced thermal stress, excellent repeatability, high electrical and thermal performance, resistance to vibration and thermal cycling, and compatibility with automated manufacturing.
At the same time, successful press-fit PCB assembly requires careful control of PCB hole dimensions, connector design, insertion force, component alignment, process monitoring, and inspection.
When these factors are properly managed, press-fit technology can provide a highly reliable connection solution for automotive electronics, servers, industrial equipment, power electronics, telecommunications systems, and many other modern electronic products.
As electronics continue moving toward higher power density, greater reliability, tighter packaging, and more automated production, press-fit technology is likely to remain an increasingly important part of modern PCB assembly.
