Have you ever opened an electronic device and noticed the dense network of tiny components inside? From smartphones and laptops to household appliances like microwaves, these miniature parts are essential to modern electronics, all mounted on compact circuit boards.
Instead of relying solely on traditional assembly methods, today’s printed circuit board (PCB) manufacturers use advanced techniques to place components directly onto the surface of the board. Most of these components are extremely small, enabling higher circuit density and improved performance. This process is known as Surface Mount Technology (SMT), a key innovation that has transformed modern electronics manufacturing. But what exactly is SMT, and why is it so widely used?
To support diverse product designs and functional requirements, PCB components and connectors are typically assembled using three main methods: Surface Mount Technology (SMT), through-hole wave soldering, and press-fit technology. Each method offers unique advantages and plays a critical role in different electronic applications.
What is Wave Soldering?
Wave soldering is a high-efficiency, large-scale soldering process used to attach electronic components to a printed circuit board (PCB), forming reliable electrical and mechanical connections. The process gets its name from the “wave” of molten solder generated inside a specialized machine.
During production, components are first placed onto the PCB—typically through-hole components, though certain surface-mount assemblies can also be processed. The board then passes over a continuously flowing wave of molten solder. As the underside of the PCB contacts the solder wave, the exposed metal areas are coated, creating strong, consistent solder joints.
Compared with manual soldering, wave soldering offers significantly higher speed, repeatability, and overall quality. It is especially well-suited for mass production environments where durability and consistency are critical. While primarily used for through-hole assembly, it can also support mixed-technology PCBs that combine both through-hole and surface-mount components.
What is SMT?
Surface Mount Technology (SMT) is a method of attaching electronic components directly onto the top and/or bottom surfaces of printed circuit boards (PCBs).
SMT differs from wave soldering and is often used as an alternative to press-fit or wave soldering technologies. Due to its high level of automation and precision, SMT enables the production of smaller assemblies with excellent consistency and repeatability.
Many manufacturers adopt SMT because it allows them to efficiently produce compact and lightweight PCBs. The process itself is relatively straightforward, involving the placement and positioning of components directly onto the surface of the board.
If you are considering using SMT technology in your PCB assembly, you will undoubtedly benefit from several key advantages:
Cheaper Manufacturing:
SMT enables the production of smaller and more compact PCB designs, which helps reduce overall manufacturing costs. Components can be placed closer together on the board, maximizing space utilization.
Improved Efficiency:
One of the main reasons PCB manufacturers favor SMT is its high efficiency. With automated processes, assemblies can often be completed within a single day, much faster than methods like press-fit technology, which typically require more time.
Simpler Board Structure:
SMT results in a more straightforward board configuration. Compared to other assembly methods, SMT-mounted boards require fewer complex processes, leading to simpler and more streamlined designs.
Less Prone to Errors:
Another advantage of SMT is the ease of correcting minor errors. Compared to more complex processes like wave soldering, SMT allows for quicker adjustments, helping manufacturers reduce defects and improve overall production yield.
Better Electromagnetic Compatibility (EMC):
SMT supports lightweight designs with shorter leads, which helps reduce electromagnetic interference. This results in lower radiation and improved EMC performance, making SMT suitable for high-performance electronic applications.

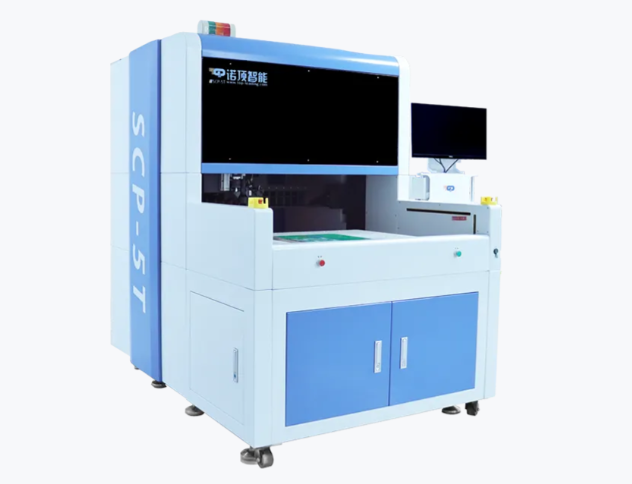

What is Press-Fit Technology?
Press-fit technology is a solderless method used in modern electronics to create reliable electrical connections while improving product flexibility. It enables high-quality electrical links without the need for traditional soldering processes.
In this method, press-fit connector pins are inserted into plated through-holes on the printed circuit board (PCB). As the pins are pressed into place, their compliant sections deform slightly, generating friction that securely holds them in position. This tight mechanical fit ensures stable contact and allows electricity to flow efficiently.
Press-fit connections are known for their reliability. The pins provide strong mechanical retention, excellent electrical conductivity, and effective heat dissipation. Compared to soldered joints, press-fit connections typically offer lower failure rates and better performance under thermal stress.
Another key advantage is thermal compatibility. Since no heat is required during installation, there is no risk of thermal damage to the PCB or surrounding components. This makes press-fit ideal for secondary assembly processes or applications where heat-sensitive components are involved.
Some of the main reasons behind the increasing adoption of press-fit technology include:
· Eliminates common soldering issues such as dry joints and cracking
· Provides strong, solder-free, and highly reliable connections
· Supports controlled-force, testable assembly processes
· Enables streamlined and consistent integration performance
· Allows direct-contact electrical interfaces
· Offers excellent electrical and thermal transfer characteristics
· Suitable for high-current and power applications
Due to these advantages, press-fit technology has become a popular solution in modern electronics manufacturing. It supports cost-effective production, simplifies rework, and offers a more environmentally friendly alternative to traditional solder-based assembly methods.
Wave Solder vs. SMT vs. Press-Fit
While there has been a gradual shift away from wave soldering in certain applications over the past two decades, it remains widely used due to its proven reliability. At the same time, SMT and press-fit technologies have become well-established, each serving specific needs based on product design, accessibility, and production volume.
Choosing between wave soldering, SMT, and press-fit should be decided early in the concept design stage, as this decision directly impacts the selection of connectors, components, and manufacturing processes.
To achieve the best results, it is essential to clearly understand the characteristics of each method and conduct thorough product research before making a final decision.
