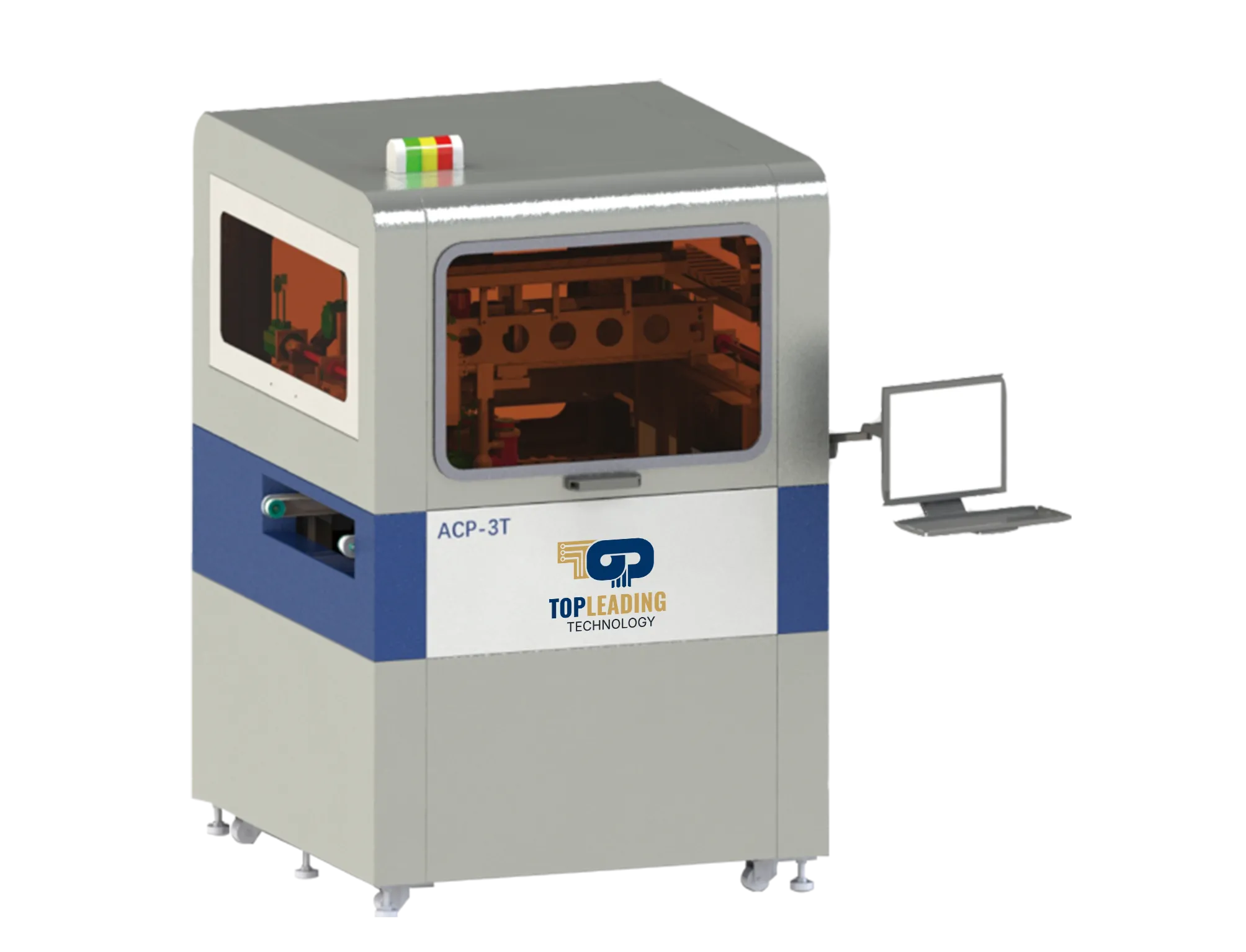

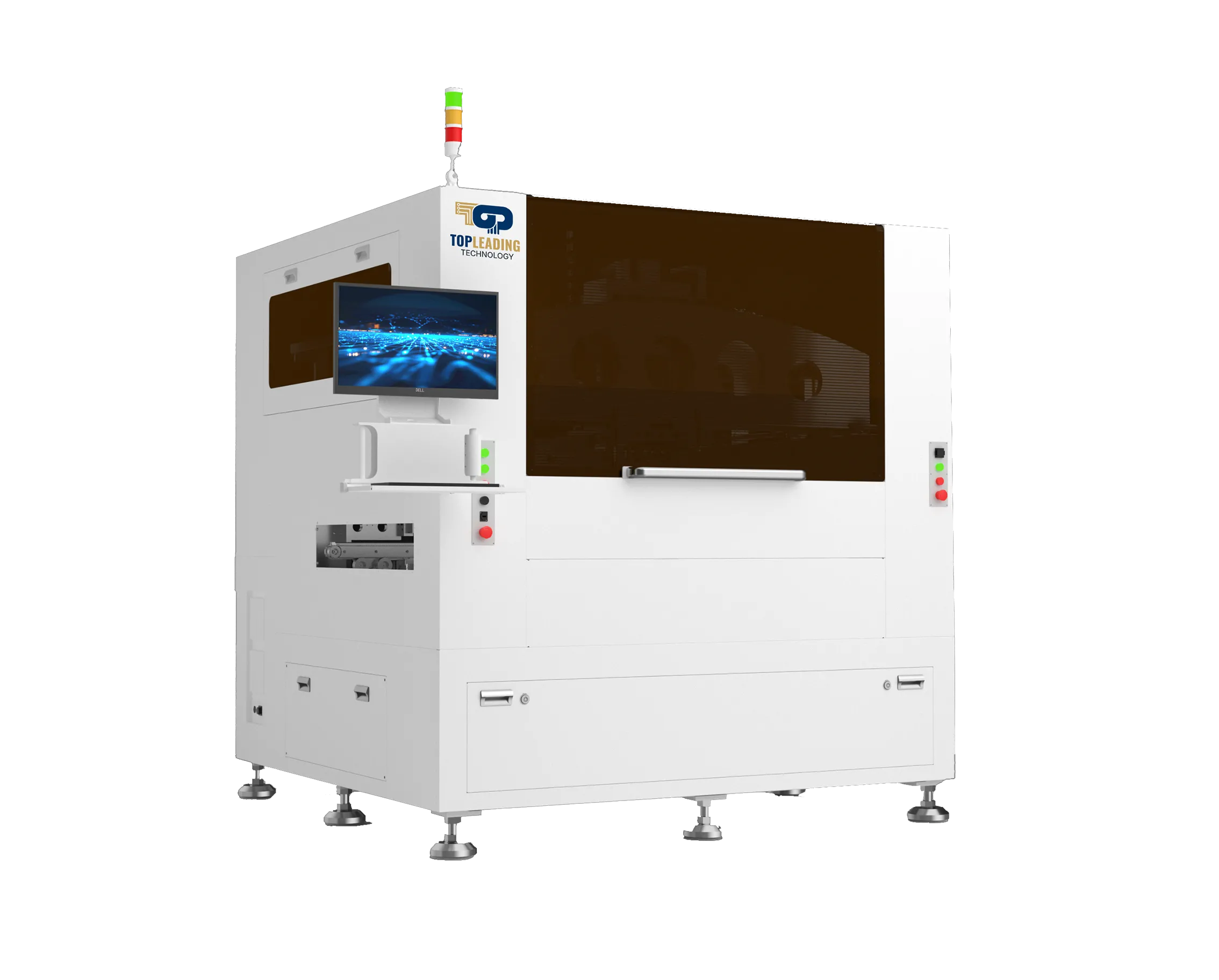

Press Fit Machine
Advantage
Equipped with extraordinary full automation capabilities, it can be embedded into automated lines for smart factories. It provides optimal support for pre-insertion, assembly, and press-fitting of IGBTs, automotive modules, motor modules, etc. Uses four-axis servo motors, precision ball screws, and high-resolution CCD detection to achieve precise control of pressure, displacement, and speed.
PRODUCT DESCRIPTION
Features
Vision Inspection System
High-resolution CCD system ensures precise second positioning for press-fitting.
Multiple Working Modes
Equipped with large and small pressure sensors (minimum 1 lb). Multi-stage control meets requirements for different precision press tasks.
Z-axis Floating Press Head
Corrects module position and supports multi-angle rotation to adapt to different module shapes.
Full Closed-loop Control System
Servo control with high-precision pressure sensors and encoders forms a closed-loop system for real-time feedback on pressure and micron-level position.
Smart Automatic Width-adjusting Track
Automatic board in/out and smart width adjustment for in-line production.
Monitoring System
Complete self-diagnosis to display faults and provide protection.
Specifications
Operating Parameters
Max Press Force: 3T
Connector Feeding: Connectable to upstream machines, SMEMA communication
PCB Movement: Automatic track (Left ↔ Right)
PCB Processing Capacity: 800L x 760W mm (Customizable)
Movement Mode: X/Y/Z/R servo four-axis
Z-axis Speed: 0.05-25mm/s
Position Accuracy: ±0.01mm
Pressure Accuracy: <0.1%fs
Specifications
Operating System: Windows 10
Safety Devices: Safety grating, door locks
Parameter Setting: Touch screen
Power Input: AC 220V, 50/60hz
Compressed Air: 0.5~0.8Mpa
Dimensions: 1836L * 1635W x 2073H mm
Weight: 2400kg
