Small and convenient, suitable for lab PIN testing and small-to-medium production. Press-fit technology is a solder-less assembly technique widely used in communication, automotive, military, and solar energy industries.

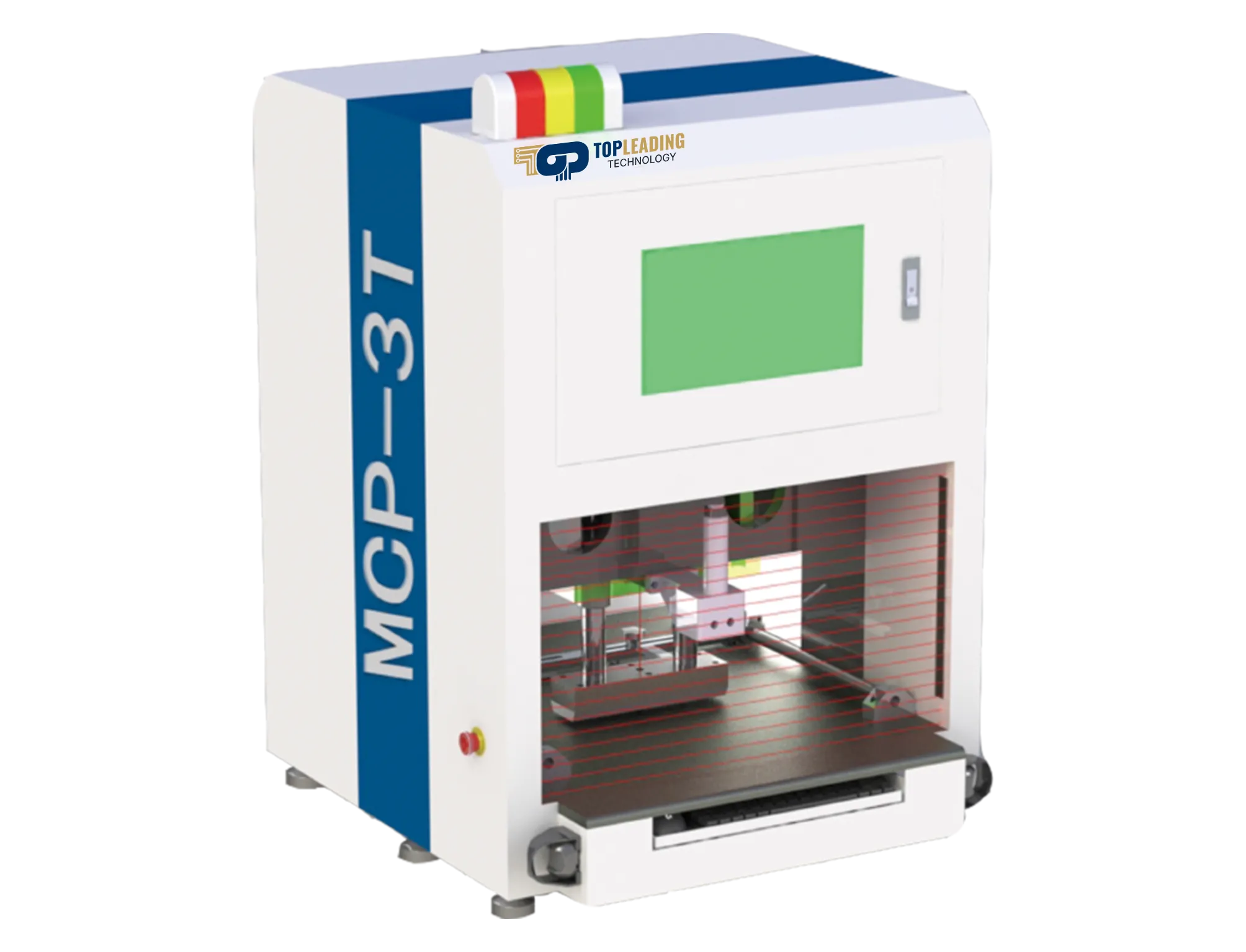

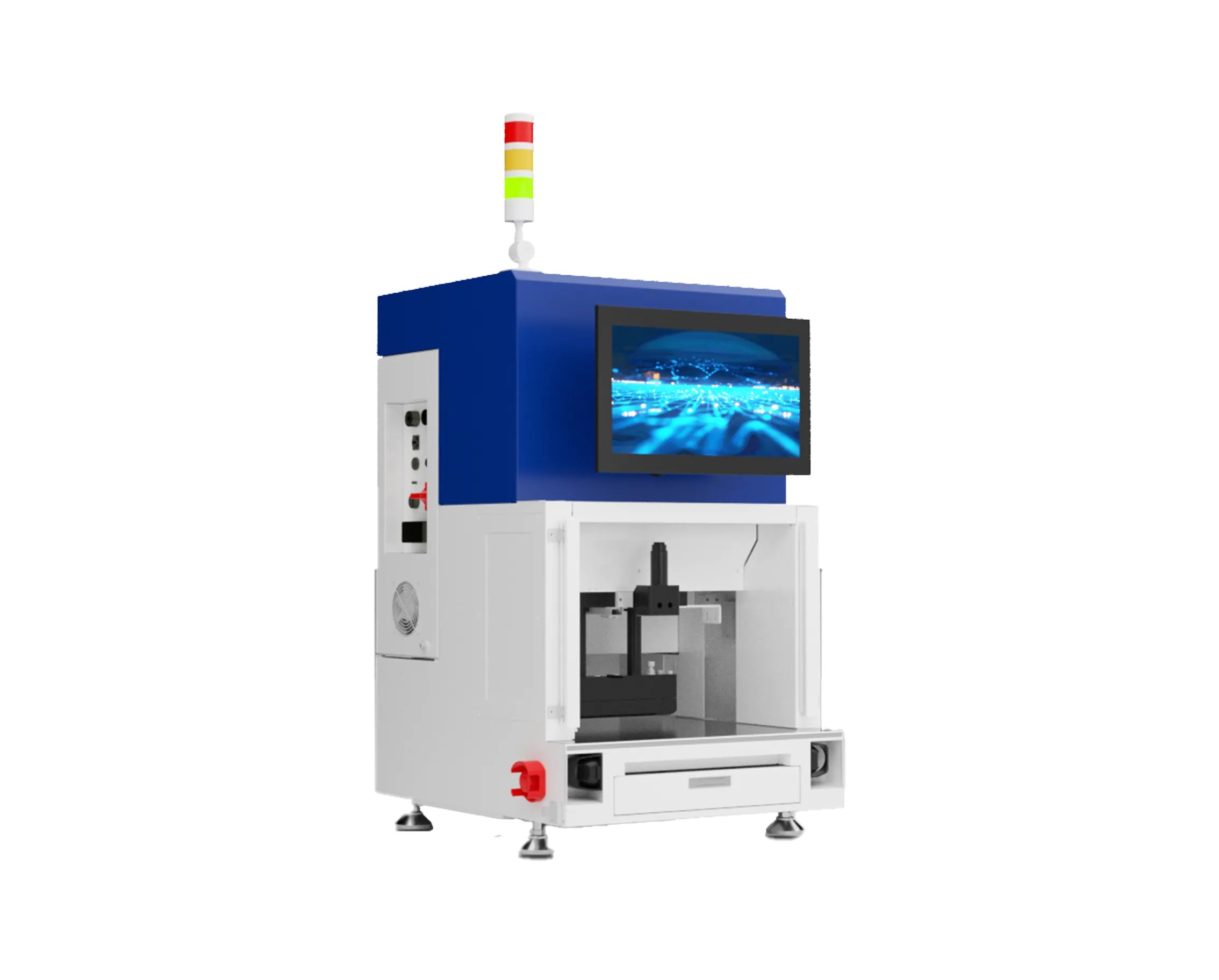

Press Fit Machine
Advantage
Small and convenient, suitable for lab PIN testing and small-to-medium production. Press-fit technology is a solder-less assembly technique widely used in communication, automotive, military, and solar energy industries.
PRODUCT DESCRIPTION
Features
Z-axis Real Distance Feedback
Real displacement monitoring up to 0.005mm.
Two-stage Press Force
Large and small sensors (minimum 1 lb).
Z-axis Locking Function
Releases 0.1mm gap during movement; eliminates it after positioning.
Small Volume
More compact than MCP-10T, suitable for narrow spaces.
Diverse Press Technologies
Work modes: FT (Force), PHT (Height), CAT (Angle), FST (Sampling).
Comprehensive Data Management
Ensures quality and traceability; supports collection/display/printing.
Specifications
Max Press Force: 3T
Press Stroke: 90mm
Z-axis Speed: 0.05-30mm/s
Z-axis Position Accuracy: ±0.01mm
Pressure Accuracy: ±1%fs
Table Size: 650L * 880W mm
PCB Capacity: 460L * 650W mm
Press Center Positioning: Laser sensor
Safety Device: Safety grating
Power Input: AC 380V, 50hz
Dimensions: 750L * 814W * 1045H mm
Weight: 400kg
