Known for high compatibility, it is the best solution for small-batch, multi-model production. Widely used in communication, automotive, military, and solar industries.

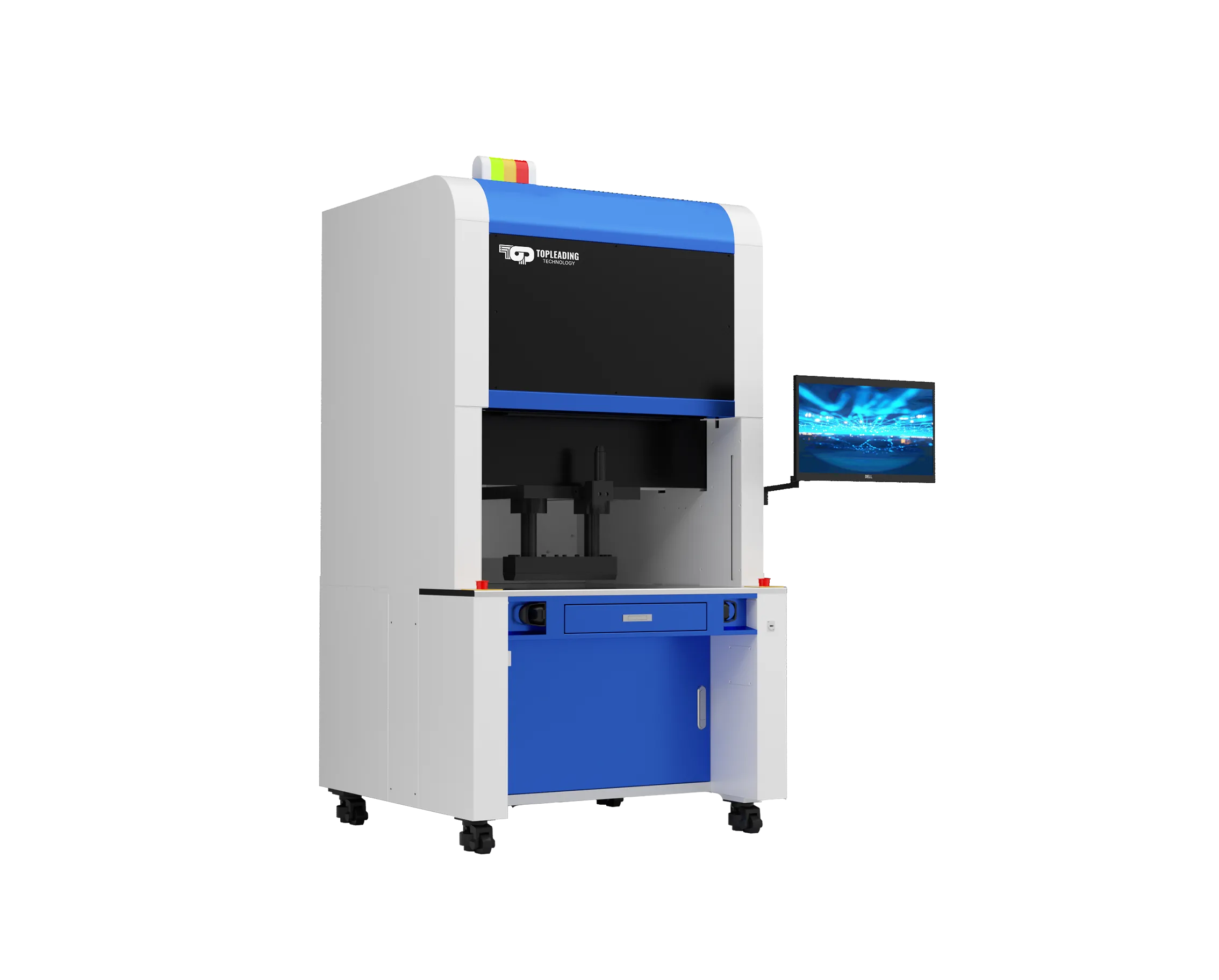

Press Fit Machine
Advantage
Known for high compatibility, it is the best solution for small-batch, multi-model production. Widely used in communication, automotive, military, and solar industries.
PRODUCT DESCRIPTION
Features
Work Table
1060L x 900W mm working area.
Pressure Sensor
Large and small sensors (minimum 1 lb).
Stroke Accuracy
Micron-level with real distance feedback.
Full Closed-loop Control
Monitoring of pressure, distance, and speed.
Diverse Press Technologies
Modes: FT, PHT, CAT, FST.
Data Management
Data collection for quality and traceability.
Specifications
Max Press Force: 6T
Press Stroke: 120mm
Z-axis Speed: 0.05-20mm/s
Z-axis Position Accuracy: ±0.01mm
Pressure Accuracy: <1%fs
Table Size: 1060L x 900W mm
PCB Movement: Air table, foot switch control
PCB Capacity: 800L x 630W mm
Press Center Positioning: Laser sensor
Safety Device: Safety grating
Power Input: AC 220V/AC 380V
Dimensions: 1200L x 1100W x 2200H mm
Weight: 1100kg
