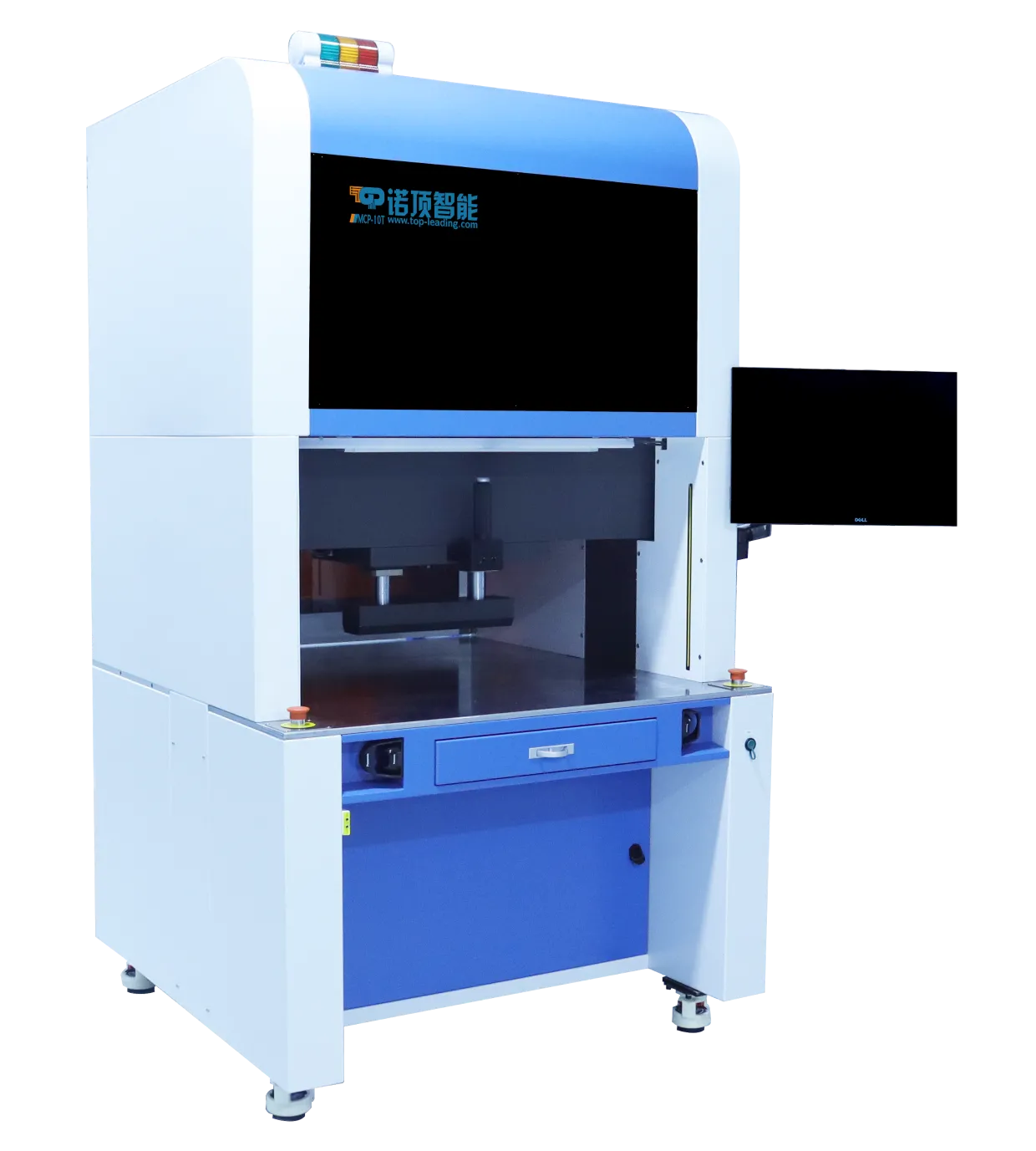

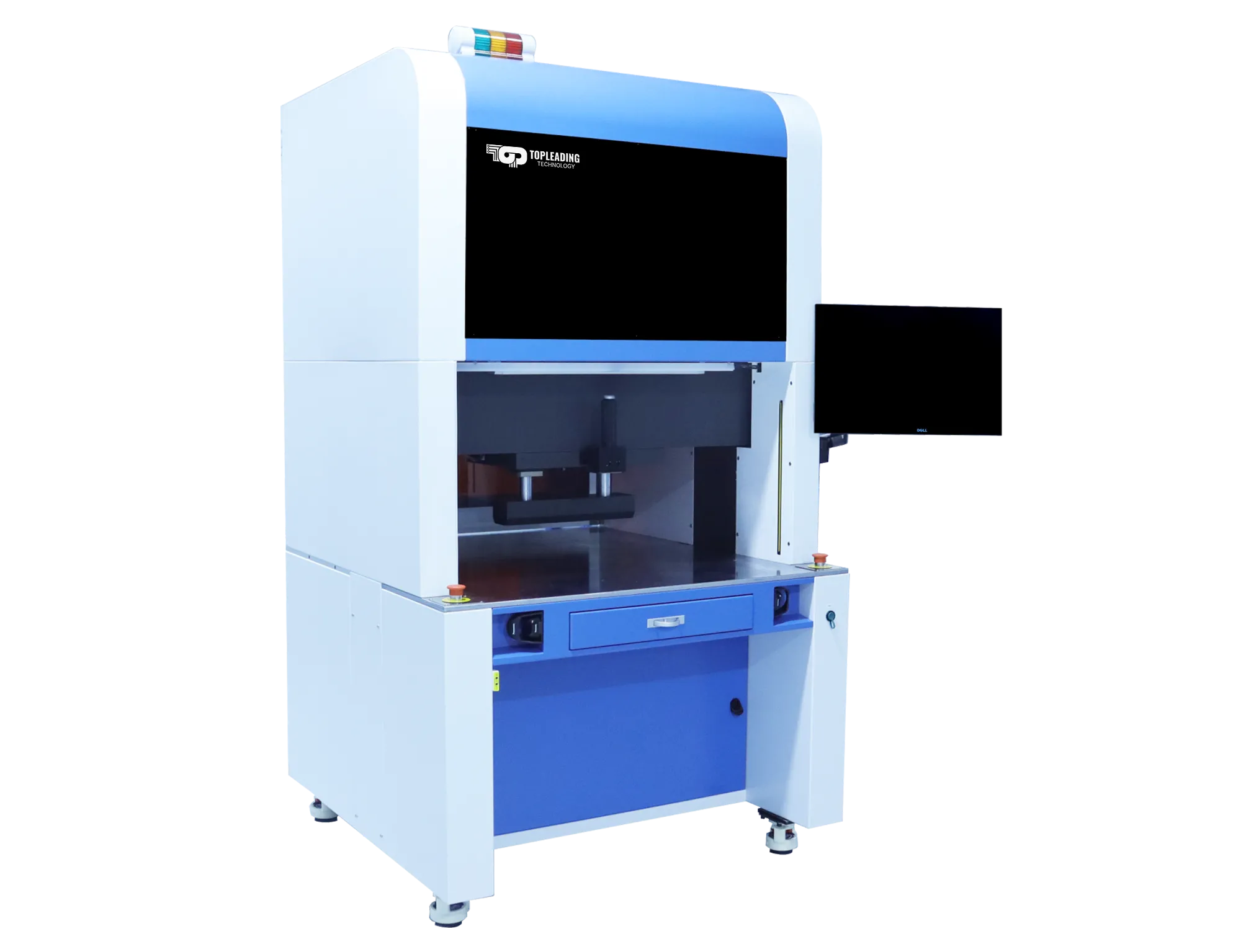

The MCP series of high-precision servo press fit machine has strong compatibility and can adapt to the vast majority of press fit products. Excellent solution for small batches and multiple models.
Press Fit Machine
Advantage
The MCP series of high-precision servo press fit machine has strong compatibility and can adapt to the vast majority of press fit products. Excellent solution for small batches and multiple models.
PRODUCT DESCRIPTION
Features
1.H-Shaped Structure: Composed of two horizontal beams and two longitudinal beams, the H-shaped structure minimizes mechanical deformation, ensuring high compressive strength and durability.
2. Two sets(large and small) pressure sensors, can detect a minimum force of 1 pound.
3.Industry-leading stroke accuracy, up to μ-level, with true distance feedback.
4.Servo Motor Drive: Full closed-loop control enables real-time monitoring of pressure, distance, and speed. This allows precise control of the press head's position and speed, enabling highly accurate and controllable crimping and effectively preventing over- and under-pressure.
5.PC Control: A touchscreen display provides exceptionally convenient human-machine interaction. Extremely simple programming and an intelligent settings database allow for precise control of crimping accuracy through parameter settings. Product changes require no hardware adjustments.
6.Production Traceability System: SPC data ensures the quality and traceability of each crimp, with data collection, display, and printing. The automatic pressure curve storage and analysis software package provides comprehensive data management for the crimping process.
7.Various crimping technologies: PFT, PHT, CAT , FST, and other work control modes enable precise crimping.
Specifications
Loading Method: Manual Pre-insertion - Manual Loading - PCB Crimping - Y-Axis Feeding - Manual Unloading
Platform Flatness: Center Crimping Area Flatness ≤ 0.13mm
Drive: Servo
Table Dimensions: 1060L x 900W
Processing Capacity: 630L x 800W
Press head Dimensions: 365L x 60W
Press head Movement: Horizontal movement with air-bearing handle
PCB Movement: Tabletop Air Blowing, Footswitch Control
Press head Center Positioning: Laser Sensor
Installation Protection: Relay, Safety Light Barrier, Emergency Stop Button
Scan code type: barcode or QR code
Scan code size: compatible with scanner guns
Z-axis travel: 120mm
Number of pressure sensors: 10T: 4pcs; 6T: 2pcs
Pressure range: 6T or 10T
Pressure accuracy: ±1% of full scale
Parameter Setting: Touchscreen operation
Program: Offline, online, and zoned
Crimp End Modes: Pressure, height, angle, sampling, and custom
Program Import: Gerber file import
