Designed for precise testing of miniature capacitor chips, ensuring stable and reliable quality control.

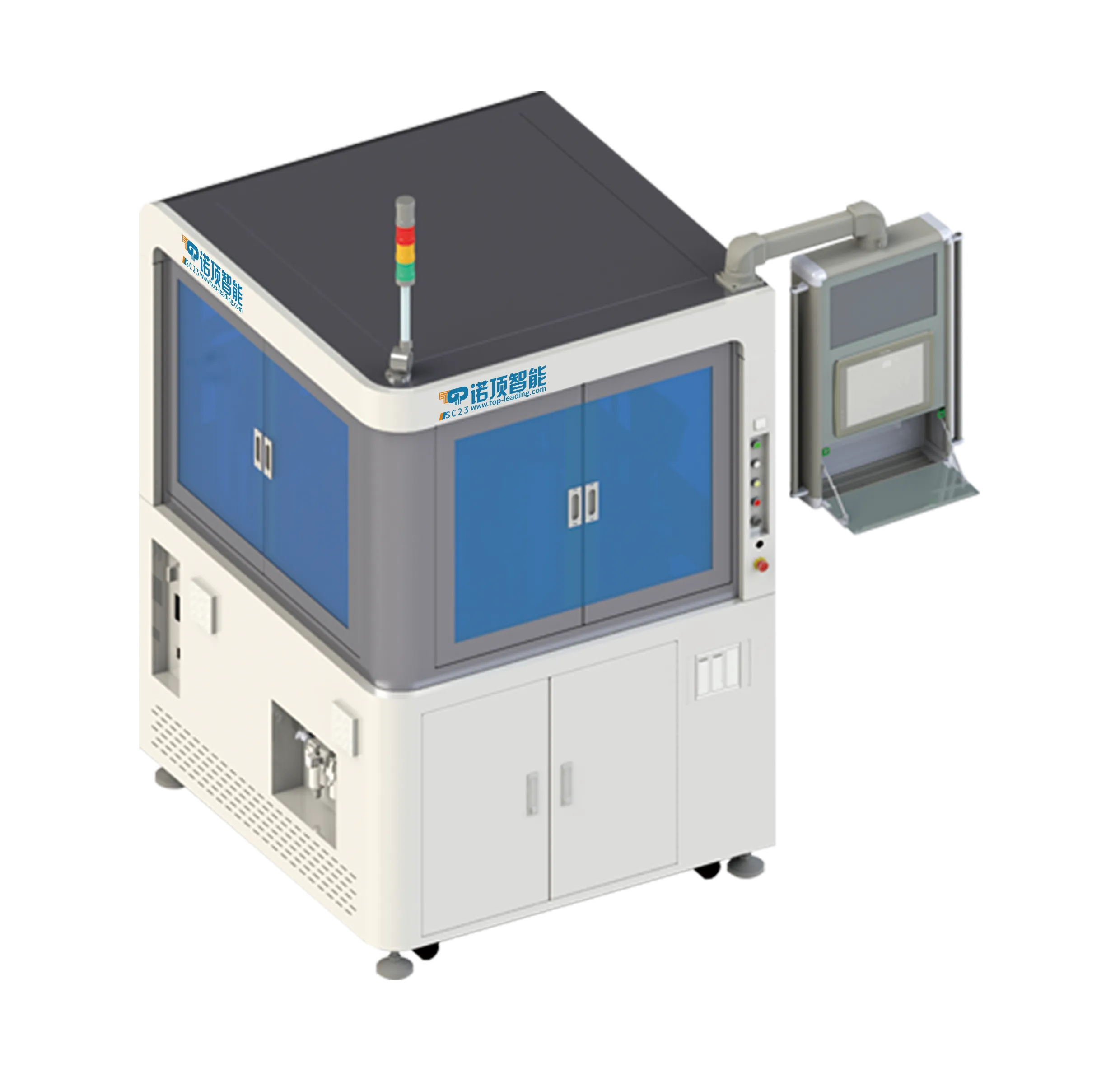

Test Handler
Advantage:
Designed for precise testing of miniature capacitor chips, ensuring stable and reliable quality control.
PRODUCT DESCRIPTION
Features
1. Achieve high-accuracy electrical testing with a wide capacitance range and ultra-low capacitance, with ±0.5% accuracy throughout the process.
2. Screening high-Q, ultra-low-loss components for critical performance in filters and impedance matching.
3. Zero surface defects guaranteed (no indentations/scratches on Au coating) during inspection.
4.High-Precision Detection: Accurately spots surface defects ≥5 μm—such as scratches, pits, discoloration, or particles—as well as coating issues like uneven or missing layers.
5. aligns tiny capacitors with ±10μm accuracy to handle small-size challenges.
Applicable Industries
Electronics manufacturing, automotive electronics, telecommunications, etc.
Tested Components
Chip capacitors
Specifications
Equipment Dimensions: 1500L×1400W×1900H (mm)
Net Weight: 1000kg~1500kg (depends on optional functions)
Power Supply: Three-phase 380V/AC220V
Power Consumption: 6kW~12kW (depends on optional functions)
Compressed Air: 0.5MPa~0.7MPa
Average Gas Consumption: 550L/min
