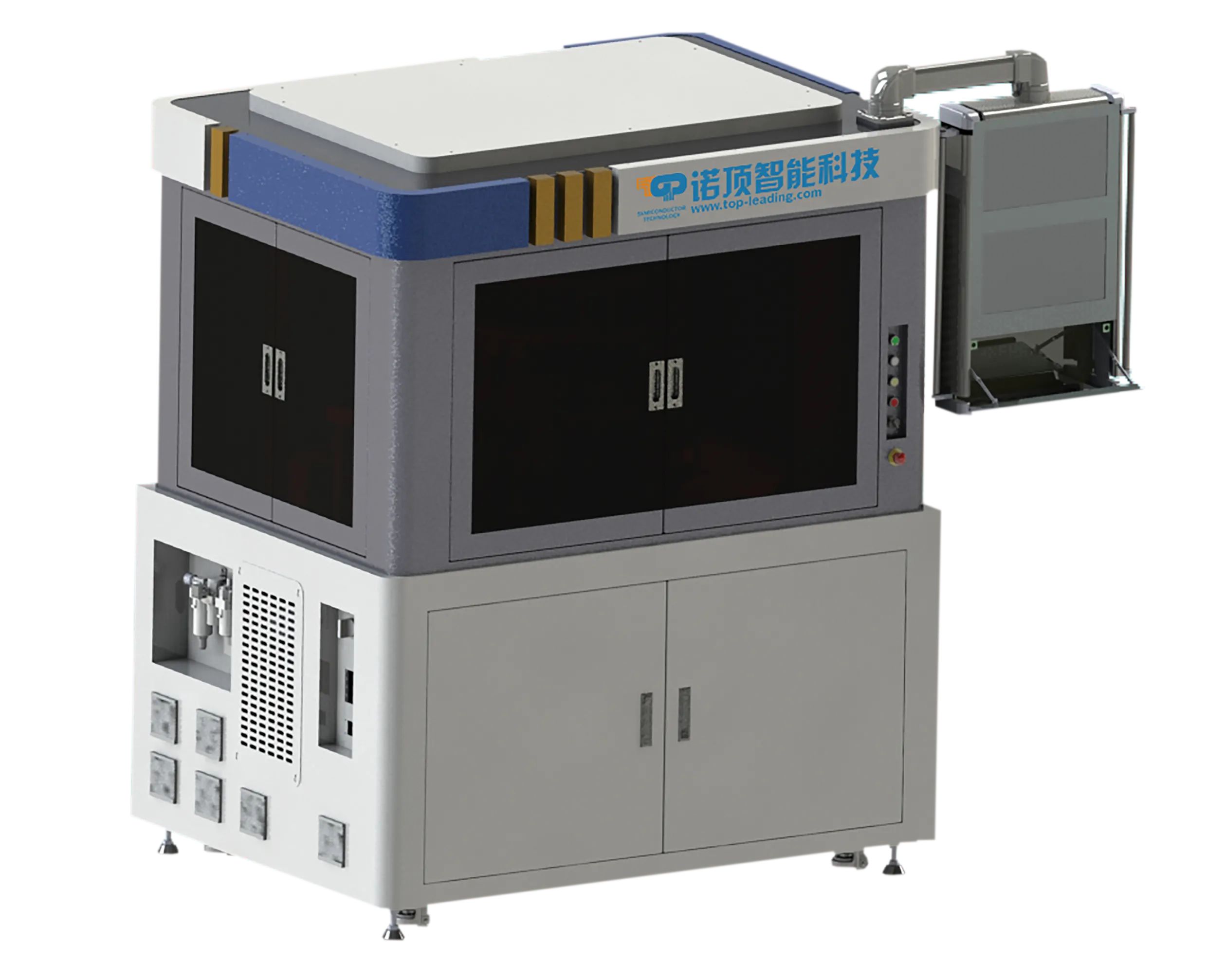

Test Handler
Advantage:
Ensure consistency: Makes sure all products in the same batch give similar test results.
PRODUCT DESCRIPTION
Features
1. Ultra-high-speed and ultra-high-precision basic testing:
Meets automotive (AEC-Q200) and industrial-grade standards.
2. Wide range of resistance measurements: from 1Ω (min) to 15GΩ (max), covering diverse product types with high precision.
3. User-defined temperature points for automatic resistance measurement and dynamic high-temperature TCR testing, with a highly stable multi-station temperature control module.
4. Performs DC withstanding voltage tests to detect breakdown voltage or excessive leakage current.
5. Pulse withstand testing to screen components with insufficient surge resistance
6. Verification of a resistor’s nominal power rating under specified conditions Rated Power Validation
Applicable Industries: Electronics manufacturing, automotive electronics, communications industry, etc.
Testing Products: Chip resistors
Specifications
Equipment Dimensions: 1500L×1400W×1900H (mm)
Net Weight: 800kg~1400kg (depends on optional functions)
Power Supply: Three-phase 380V/AC220V
Power Consumption: 6kW~11kW (depends on optional functions)
Compressed Air: 0.5MPa~0.7MPa
Average Gas Consumption: 550L/min
