Automated Optical Inspection (AOI) is an important technology in modern manufacturing, especially in the electronics and semiconductor industries. AOI systems are mainly used to inspect products such as printed circuit boards (PCBs) to ensure they meet required quality standards. By combining high-resolution cameras with advanced inspection software, AOI systems can quickly detect defects, assembly errors, and inconsistencies in manufactured products. This non-contact visual inspection method helps manufacturers improve product quality, reduce defects, and increase production efficiency. In this article, we will discuss how AOI systems work, their advantages, applications, different types, and their role in modern manufacturing processes.
What is an Automated Optical Inspection (AOI) System?
An Automated Optical Inspection (AOI) system is an automated visual inspection machine used to identify defects or irregularities in manufactured products, particularly PCBs. AOI systems use high-speed cameras, specialized lighting, and intelligent image-processing algorithms to inspect products for issues such as missing components, poor solder joints, incorrect component placement, polarity errors, or alignment problems.
AOI technology provides manufacturers with an efficient and reliable quality control solution by automating the inspection process and reducing the need for manual inspection. This helps minimize human error, improve inspection accuracy, and ensure consistent product quality throughout the production line.
How Does AOI Work?
AOI systems inspect products by capturing high-resolution images of the product’s surface and comparing these images to predefined criteria or a “golden reference,” which is a perfect version of the product. If there is any deviation between the captured image and the reference, the system flags the product for further inspection or rejection.
Here is a step-by-step breakdown of the AOI process:
Image Acquisition: The product passes under high-resolution cameras that capture multiple images from different angles. The lighting system is optimized to highlight specific features and detect surface defects.
Image Processing: Advanced software processes the captured images using machine vision algorithms. These algorithms analyze the images, extract relevant features, and compare them against reference images or design specifications.
Defect Detection: The system identifies any inconsistencies or defects, such as missing components, soldering defects, incorrect component placement, or surface contamination.
Classification: Detected anomalies are classified based on severity. Some defects may be cosmetic and acceptable, while others may require rework or rejection.
Report and Action: The AOI system generates a report detailing the types of defects found. Based on the results, the product may be sent for manual inspection, rework, or scrapped entirely.
Key Components of an AOI System
Cameras:
High-resolution cameras capture images of the products for analysis. Some AOI systems use multiple cameras to capture images from different angles to ensure full surface coverage.
Lighting System:
Proper lighting is essential in an AOI system, as it helps reveal defects on the product surface. Different lighting techniques, such as bright field, dark field, or structured lighting, are used depending on the inspection requirements.
Image Processing Algorithms:
These are the core of an AOI system. The algorithms process captured images and compare them with reference images to detect defects. Common methods include edge detection, pattern matching, and deep learning-based approaches.
User Interface:
The AOI system usually includes a user interface for configuring inspection parameters, reviewing results, and generating reports. Operators can set pass/fail criteria and adjust the sensitivity of the inspection process.
Types of Defects Detected by AOI
AOI systems are highly versatile and can detect a wide range of manufacturing defects, including:
Component Presence and Placement: Ensures that all components are present and correctly positioned on the board.
Solder Joint Inspection: Detects issues such as insufficient solder, solder bridging, and tombstoning.
Surface Defects: Identifies scratches, contamination, or foreign materials on the surface of a PCB.
Lead Defects: Checks for bent, missing, or damaged component leads.
Polarity Check: Verifies that components are installed in the correct orientation.
Types of AOI Systems
Different AOI systems are used depending on the application and production stage:
Inline AOI Systems:
Integrated directly into the production line, these systems inspect products during manufacturing and provide real-time feedback for immediate process adjustments.
Offline AOI Systems:
Standalone inspection units used after production. They are suitable for batch inspection or situations where continuous in-line monitoring is not required.
2D AOI Systems:
These systems capture flat, two-dimensional images of the product. They are commonly used for basic inspections such as component presence and placement verification.
3D AOI Systems:
An advanced inspection method that builds a three-dimensional model of the product. It enables more precise detection of defects such as solder height, volume, and coplanarity, making it especially suitable for complex and high-density PCB assemblies.
Advantages of AOI Systems
Increased Inspection Speed:
AOI systems can inspect products much faster than manual inspection methods, significantly improving production throughput and overall efficiency.
High Accuracy and Repeatability:
Unlike human inspection, AOI systems deliver consistent and stable performance, reducing errors caused by fatigue, attention variation, or subjective judgment.
Cost Efficiency:
Although the initial investment in AOI equipment can be high, it helps reduce long-term costs by preventing defective products from reaching the market and lowering rework and scrap rates.
Non-Contact Inspection:
AOI uses optical imaging technology for inspection, meaning there is no physical contact with the product. This helps protect delicate components from damage during the inspection process.
Data Collection and Analysis:
AOI systems can store detailed inspection data, enabling manufacturers to analyze defect trends and optimize production processes for continuous quality improvement.
Applications of AOI Systems
Electronics Manufacturing:
AOI is widely used for inspecting PCBs and electronic assemblies. It helps detect component placement errors, soldering defects, and other issues in high-speed production environments.
Automotive Industry:
AOI systems are used to inspect automotive electronic and mechanical components, ensuring they meet strict reliability and safety standards required in vehicle manufacturing.
Medical Devices:
In medical device production, AOI helps ensure compliance with stringent regulatory requirements by detecting defects early in the manufacturing process and improving product safety.
Metal Parts and Steel Manufacturing:
AOI is used to detect surface defects, scratches, dents, and dimensional inaccuracies in metal and steel products such as sheets, pipes, and structural components, ensuring consistent product quality.
Plastic and Polymer Manufacturing:
AOI inspects molded plastic parts for surface imperfections, incorrect dimensions, and misalignment. It is widely used in packaging, automotive plastics, and consumer product manufacturing.
Machinery and Equipment Manufacturing:
AOI systems help verify dimensional accuracy, surface quality, and alignment of mechanical components, supporting quality control in industrial machinery production.
Textile Industry:
In textile production, AOI is used to detect weaving defects, color inconsistencies, and pattern errors, ensuring uniform fabric quality and appearance.
Semiconductor Industry:
AOI plays a critical role in wafer inspection, die placement, and packaging processes, ensuring high precision and minimizing defects in semiconductor manufacturing.
Packaging Industry:
AOI systems inspect printed graphics, labels, barcodes, and packaging integrity, ensuring both visual quality and functional correctness of packaged products.
Challenges of AOI Systems
Initial Cost:
The cost of purchasing and integrating an AOI system can be relatively high, especially for small and medium-sized manufacturers. However, this investment is often offset by long-term benefits such as reduced defect rates, lower rework costs, and improved production efficiency.
Complexity of Programming:
Properly configuring an AOI system requires technical expertise. This includes defining inspection criteria, optimizing lighting conditions, and setting up machine vision algorithms to accurately detect defects in different production scenarios.
False Positives:
AOI systems—particularly 2D inspection systems—may occasionally generate false alarms due to reflections, shadows, or variations in image quality. While 3D AOI systems can significantly reduce this issue, they typically come with higher equipment and implementation costs.

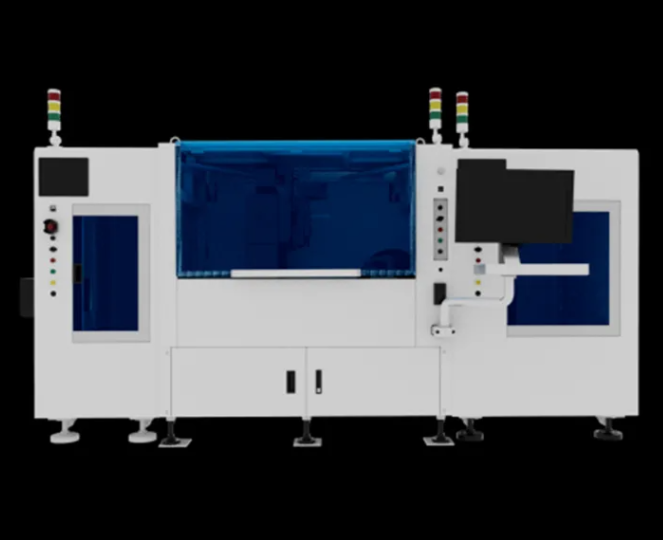

Top Leading Intelligent's Advanced AOI System for Diverse Industries
Top Leading Intelligent offers a comprehensive Automated Optical Inspection (AOI) system tailored to meet the needs of various industries, including metal and steel, wood, semiconductors, automotive parts, textiles, and other surface inspection applications.
Top Leading Intelligent’s AOI solution is powered by robust AI-driven software that integrates seamlessly with different imaging systems. The system processes product images in real time through a localized controller, ensuring fast and accurate defect detection.
Why Choose Top Leading Intelligent’s AOI System?
Choosing Top Leading Intelligent’s Automated Optical Inspection (AOI) system provides several key advantages for industries aiming to improve manufacturing efficiency and quality control. Here’s why Top Leading Intelligent stands out:
AI-Powered Inspection:
Top Leading Intelligent’s AOI system uses advanced AI algorithms for highly accurate defect detection. It can learn and adapt to new defect types, reducing false positives and improving inspection precision across different applications.
Real-Time Processing:
The system processes product images in real time through a localized controller, providing immediate defect feedback. This helps manufacturers quickly identify and resolve issues, reducing downtime and improving production efficiency.
Seamless Integration:
Top Leading Intelligent’s AOI system can easily integrate with existing Programmable Logic Controllers (PLCs) in manufacturing lines, enabling smooth deployment without major changes to existing production systems.
Customizable for Multiple Industries:
The system is adaptable for industries such as automotive, metal and steel, semiconductor, textile, plastic, and machinery. It can handle a wide range of materials and surface types, from electronic components to heavy industrial parts.
High-Resolution Imaging:
Top Leading Intelligent’s system supports multiple imaging setups, delivering high-quality images that improve defect visibility. With support for both 2D and 3D inspection, it can detect even small defects in complex products.
Cost-Efficient and Scalable:
By automating inspection processes, the system reduces labor costs and minimizes defective output. It is also scalable, making it suitable for production lines of different sizes and future expansion needs.
Comprehensive Support and Upgrades:
Top Leading Intelligent provides ongoing technical support and regular software updates, ensuring the AOI system remains up to date, stable, and adaptable to evolving manufacturing requirements.
