Semiconductor manufacturing is a highly complex, multi-stage process typically divided into front-end and back-end manufacturing. Although both stages are essential to producing functional semiconductor devices, they differ markedly in objectives, workflows, and equipment. As a high-tech company specializing in vacuum welding machines and automated production lines for semiconductor packaging, Top Leading recognizes the critical role of back-end manufacturing. This article explores the key distinctions between front-end and back-end processes and explains how each stage contributes to the performance and reliability of the final semiconductor device.
Front-End Semiconductor Manufacturing Process
The front-end semiconductor manufacturing process represents the initial phase of chip production, focusing on wafer creation and device fabrication. At this stage, raw materials are transformed into fully patterned semiconductor wafers that contain integrated circuits. The main steps include:
1. Wafer Fabrication
The process begins with the production of semiconductor wafers, most commonly silicon, though materials such as gallium arsenide may also be used. Key fabrication steps include:
·Oxidation: High-temperature exposure to oxygen forms a thin oxide layer that acts as an electrical insulator.
·Photolithography: Light-sensitive materials and precision masks are used to transfer circuit patterns onto the wafer.
· Deposition and Etching: Conductive and insulating layers are deposited and selectively etched to build the required microstructures.
2. Doping
Doping introduces controlled impurities, such as phosphorus or boron, into specific wafer regions to alter electrical properties. This step defines conductive and non-conductive areas essential for device functionality.
3. Circuit Formation
Through repeated cycles of photolithography, etching, and deposition, detailed circuit structures are formed. Extreme precision is required to ensure device performance, consistency, and yield.
4. Wafer-Level Testing
Before further processing, wafers undergo electrical testing to verify functionality and performance parameters. Defective dies are identified at this stage to improve downstream efficiency.
The front-end process concludes once wafer fabrication is complete and the individual semiconductor dies are ready for dicing and subsequent back-end assembly and packaging.

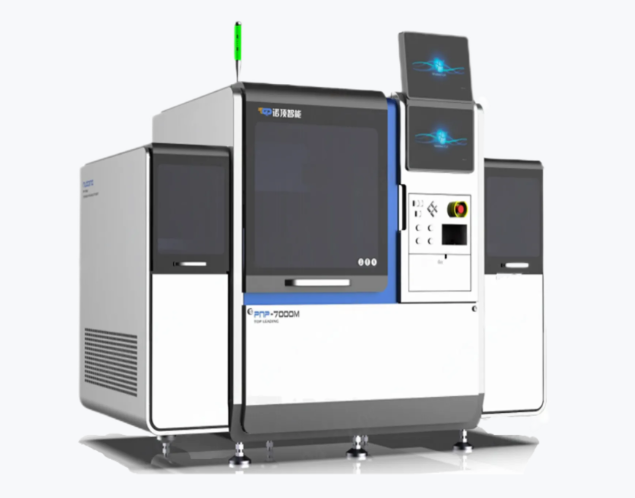

Back-End Semiconductor Manufacturing Process
The back-end semiconductor manufacturing process concentrates on the assembly, packaging, and final testing of individual semiconductor chips. This stage plays a vital role in ensuring that devices meet strict requirements for performance, durability, and long-term reliability. The main steps include:
1. Wafer Dicing
After front-end fabrication is complete, the processed wafer is cut into individual semiconductor dies. Each die will later be assembled into a finished chip.
2. Die Bonding
Die bonding involves attaching each die to a substrate or lead frame using materials such as conductive epoxy or solder. The bonding method and material are selected based on electrical performance, thermal requirements, and application needs.
3. Wire Bonding
Fine metal wires are then used to create electrical connections between the die and the package terminals. This step enables signal and power transmission between the chip and external circuits.
4. Packaging
Packaging is one of the most critical stages of back-end manufacturing. The semiconductor die is enclosed in a protective package made of plastic, ceramic, or metal. The package provides mechanical stability, electrical interconnection, and protection against environmental factors such as moisture, heat, and contamination.
5. Testing and Quality Control
The final stage involves comprehensive testing to verify device performance and reliability under real-world conditions. Common tests include:
· Functional Testing: Verifying electrical characteristics and operation.
· Burn-In Testing: Applying thermal and electrical stress to identify early failures.
· Reliability Testing: Evaluating long-term stability and durability.
After completing these tests, the packaged semiconductor devices are approved for shipment to customers.
Key Differences Between Front-End and Back-End Processes
Although both front-end and back-end manufacturing are essential to producing functional semiconductor devices, they differ significantly in focus, technologies, and end results:
1. Focus
Front-End: Concentrates on wafer fabrication, circuit formation, and doping to create integrated device structures.
Back-End: Emphasizes assembly, packaging, and final testing of individual semiconductor devices.
2. Equipment Used
Front-End: Relies on advanced photolithography systems, deposition tools, and ion implanters for precise material processing.
Back-End: Utilizes packaging equipment such as die bonders, wire bonders, and vacuum welding machines for hermetic sealing.
3. Skill Set and Expertise
Front-End: Requires strong expertise in materials science, microelectronics, and photonics.
Back-End: Demands knowledge in semiconductor packaging, mechanical engineering, thermal management, and reliability testing.
4. Outcomes
Front-End: Produces fully processed wafers containing multiple semiconductor devices that remain connected to the wafer.
Back-End: Delivers fully packaged, tested semiconductor devices ready for integration into electronic products.
Conclusion
In summary, both front-end and back-end semiconductor manufacturing processes are essential to delivering reliable, high-performance semiconductor devices. The front-end focuses on wafer fabrication and circuit formation, while the back-end emphasizes assembly, packaging, and rigorous testing to ensure functionality and durability in real-world applications.
