Optical chips are becoming increasingly important in optical communication, silicon photonics, laser systems, data centers, sensing, automotive optoelectronics, and other high-performance applications. As these devices become smaller and more complex, even microscopic scratches, particles, edge chipping, coating defects, or dimensional deviations can affect downstream assembly quality and device reliability.

This is where automated optical inspection (AOI) plays an important role.

An automated optical inspection system uses high-resolution imaging, controlled illumination, precision positioning, and image-processing algorithms to inspect optical chips without physical contact. Instead of relying on operators to examine chips manually under microscopes, AOI automatically captures images of critical surfaces, identifies abnormal features, classifies defects, and determines whether each chip meets predefined quality criteria.

Modern photonics AOI platforms can inspect not only the top surface but also chip facets, sidewalls, edges, coatings, electrodes, and other critical structures. High-magnification imaging and increasingly sophisticated deep-learning algorithms are also being used to recognize cracks, particles, contamination, and other complex defects.

What Is Automated Optical Inspection for Optical Chips?

Automated optical inspection is a non-contact machine vision inspection method used to identify visible manufacturing defects automatically.

A typical optical chip AOI system consists of:

· High-resolution industrial cameras

· Microscope or high-magnification optical systems

· Precisely controlled illumination

· High-accuracy motion and positioning stages

· Image-processing software

· Rule-based inspection algorithms

· AI or deep-learning defect classification

· Automated chip handling and sorting mechanisms

· Production data and traceability software

During inspection, the system captures detailed images of the optical chip and analyzes characteristics such as surface condition, geometry, position, edge integrity, electrode structure, coating quality, and contamination.

The measured information can then be compared with predefined tolerances, reference images, CAD information, or trained AI models.

The basic process can be summarized as:

Image acquisition → image processing → feature extraction → defect detection → defect classification → pass/fail decision → sorting and traceability.

AOI systems used in electronics and semiconductor manufacturing typically combine optical hardware with software algorithms that extract features from acquired images and classify inspected components according to user-defined quality requirements.

How Does Automated Optical Inspection Detect Optical Chip Defects?

1. The Optical Chip Is Automatically Positioned

The inspection process starts by loading the optical chips into the AOI system.

Depending on the production process, chips may be supplied through:

· Wafers

· Gel-Pak carriers

· Waffle packs

· Trays

· Tape-and-reel systems

· Dedicated fixtures

· Chip-on-carrier assemblies

A precision motion platform moves each chip into the required inspection position.

Accurate positioning is especially important for photonic devices because inspection areas may be extremely small. Laser diode facets, waveguides, electrodes, bonding pads, optical windows, and chip edges must all be located correctly before defect analysis begins.

Machine vision can also automatically recognize the chip position and orientation before inspection.

2. Controlled Lighting Highlights Microscopic Defects

Good imaging depends heavily on illumination.

Simply placing a camera above an optical chip is usually not sufficient. Different defects interact with light differently.

For example:

· Scratches may become visible under directional illumination.

· Particles can produce strong contrast against a smooth surface.

· Edge chipping can be highlighted with angled lighting.

· Reflective metal surfaces may require specialized illumination to control glare.

· Transparent or semi-transparent structures may require different wavelengths or optical configurations.

· Coating abnormalities may become easier to identify using optimized color channels.

AOI systems therefore use carefully designed lighting configurations to increase the contrast between normal structures and defects.

High-end inspection platforms may combine multiple illumination directions, polarization techniques, RGB illumination, or other optical methods to reveal features that would be difficult to detect using ordinary bright-field imaging.

For optical chips in particular, controlling reflections is essential because semiconductor surfaces, metal electrodes, optical coatings, and polished facets can generate strong specular reflections.

3. High-Resolution Cameras Capture Detailed Chip Images

Once the chip and lighting are properly positioned, high-resolution cameras capture images of the inspection area.

Depending on the optical device, AOI may inspect:

· Front surface

· Back surface

· Left and right sides

· Chip edges

· Laser diode facets

· Optical windows

· Waveguides

· Ridges

· Electrodes

· Bond pads

· Coating areas

Photonics AOI systems are already being used for laser-diode facet inspection, coating quality control, semiconductor-chip surface inspection, top/bottom/sidewall inspection, and chip sorting.

Multi-side inspection is particularly valuable for optical chips because defects are not always located on the upper surface.

For example, an edge-emitting laser diode may appear acceptable from above while having contamination or damage on the emitting facet.

4. Image Processing Makes Defects Easier to Identify

Raw camera images normally require processing before accurate defect detection can begin.

Common image-processing operations can include:

· Image alignment

· Background correction

· Noise reduction

· Contrast enhancement

· Edge detection

· Threshold segmentation

· Pattern recognition

· Geometric measurement

· Texture analysis

· Region-of-interest extraction

The software first identifies the important inspection areas.

Instead of treating the entire chip as one image, the system can divide it into individual regions such as:

facet → ridge → electrode → bond pad → edge → waveguide → substrate

Different inspection rules can then be applied to each region.

This is important because a small particle located far away from an active optical structure may have a different quality impact from the same particle located directly on an optical facet.

5. The AOI System Compares the Image Against Acceptance Criteria

After image processing, inspection algorithms determine whether the observed features are normal.

Traditional AOI systems often use predefined rules such as:

· Maximum scratch length

· Minimum edge distance

· Maximum allowable contamination area

· Acceptable component position

· Width and height tolerance

· Surface brightness tolerance

· Electrode geometry tolerance

The measured feature is compared against these criteria.

For example:

Measured scratch width > allowable limit → NG

or:

Measured ridge width within tolerance → PASS

Reference or template comparison can also be used. An inspected image is aligned with a known-good structure, and significant deviations are flagged for further evaluation.

What Defects Can AOI Detect in Optical Chips?

The exact inspection capability depends on the optical design, resolution, illumination, algorithms, and chip type.

Common detectable defects include:

Commercial laser-diode inspection equipment, for example, is designed to detect cracks, contamination, coating failures, and scratches on chip surfaces and facets.

Semiconductor inspection systems more broadly also target scratches, fractures, pits, chipping, foreign materials, particles, pattern defects, and misalignment.

Why Is Multi-Side Inspection Important for Optical Chips?

Unlike many conventional electronic components, optical chips often contain functional surfaces on multiple sides.

Consider an edge-emitting laser chip.

Its:

· Top surface may contain electrodes.

· Sidewalls may reveal chipping.

· Front facet forms the optical emission surface.

· Back facet may contain another critical optical coating.

· Chip edges may be damaged during dicing or handling.

Inspecting only the top surface could therefore miss important defects.

Modern optical chip visual inspection machines can use multiple cameras or automated positioning mechanisms to inspect several surfaces without requiring extensive manual handling.

Non-contact inspection is particularly valuable because repeated mechanical handling can itself introduce contamination, scratches, or damage.

2D vs. 3D AOI for Optical Chip Inspection

Most visible surface defects can be evaluated using high-resolution 2D imaging.

2D AOI is suitable for:

· Scratches

· Particles

· Contamination

· Pattern defects

· Printing defects

· Surface abnormalities

· Electrode geometry

· Edge defects

3D inspection can additionally evaluate:

· Height

· Step differences

· Coplanarity

· Surface profile

· Solder or bonding geometry

· Structural deformation

For complex chip-on-carrier or advanced packaging processes, combining 2D imaging with 3D measurement provides a more complete quality picture.

Why AI AOI Is Replacing Manual Microscope Inspection

Manual microscope inspection remains useful for engineering review, but it becomes increasingly difficult to scale as optical-chip production volumes increase.

Human inspection can be influenced by:

· Operator fatigue

· Experience differences

· Inconsistent defect judgment

· Inspection speed

· Defect complexity

· Large numbers of inspection points

AOI provides standardized inspection criteria.

Every chip can be evaluated using the same recipe, imaging conditions, tolerances, and defect library.

This helps manufacturers achieve:

· More consistent inspection

· Higher production throughput

· Reduced dependence on manual inspection

· Automatic OK/NG sorting

· Better defect statistics

· Faster process feedback

· Complete image traceability

· Easier production quality analysis

Inspection images can also be stored with lot numbers, carrier information, work orders, defect classifications, and production data, creating a traceable quality record.

Automated Optical Inspection for High-Volume Optical Chip Manufacturing

As silicon photonics, high-speed optical communication, laser devices, VCSELs, photonic integrated circuits, and advanced optical packaging continue developing, optical inspection requirements are becoming more demanding.

Manufacturers increasingly need inspection platforms capable of combining:

· Micron- or sub-micron-level imaging

· Automated multi-side inspection

· High-speed material handling

· AI defect recognition

· Flexible inspection recipes

· Automatic sorting

· Production data collection

· MES integration

· Defect image storage

· Full lot traceability

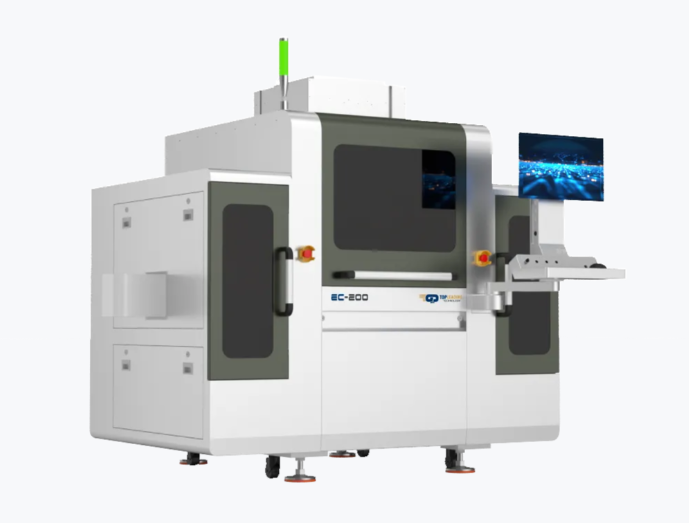

For example, Top Leading's EC400 Series Optical Chip Visual Inspection Machine is designed for optical-chip and COC inspection applications, including LD, PD, PIC and related photonic devices. Its inspection architecture supports multi-surface optical inspection, AI-based analysis, automated handling, defect review, production statistics, and traceability functions.

These capabilities make automated inspection increasingly suitable not only for laboratory analysis but also for high-volume photonic device production.

Conclusion

So, how does automated optical inspection detect defects in optical chips?

AOI first uses controlled illumination and high-resolution cameras to capture detailed images of critical chip surfaces. Image-processing algorithms then locate inspection regions, enhance relevant features, and measure surface or geometric characteristics. Rule-based algorithms or AI deep-learning models compare these features against acceptable quality standards and classify abnormalities such as scratches, cracks, chipping, contamination, coating defects, particles, electrode defects, and dimensional deviations.

Advanced systems can extend this process across the chip's top, bottom, sidewalls, edges, and optical facets while automatically handling, sorting, and recording every inspected device.

For modern photonics manufacturing, this combination of precision optics, machine vision, artificial intelligence, automation, and traceability makes AOI an essential tool for improving inspection consistency, production efficiency, and optical-chip manufacturing yield.
