In semiconductor back-end manufacturing, much attention is focused on the tester — the ATE (Automated Test Equipment) system that verifies whether a chip meets its specifications. However, another piece of equipment is equally critical to maintaining an efficient testing process: the handler.
Without a handler, chips cannot move through the test process. In a high-volume production environment, the speed and accuracy of chip movement within the test cell directly impact production output, yield data collection, and cost per device.
What Does a Handler Do?

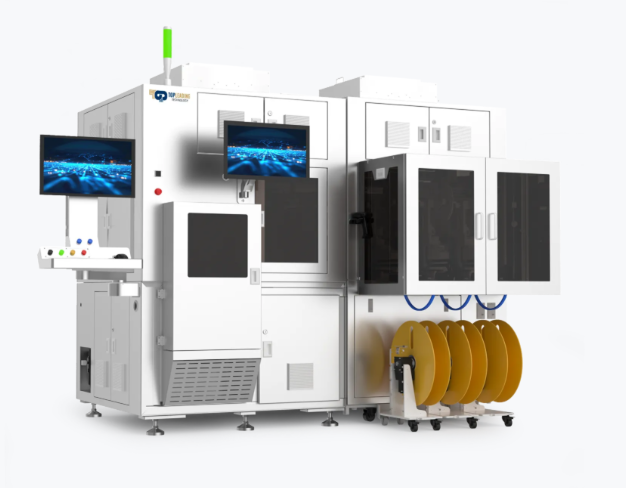

A handler is an automation system that picks up individual packaged chips, places them into the ATE tester for testing one at a time or in batches, and then sorts the tested devices into different bins according to their results, such as pass, fail, or specific performance grades.
It manages the physical movement of devices throughout the test process, allowing the tester to focus entirely on electrical measurement. Together, the handler and tester form the core components of a final test cell.
The Main Types of Handlers
Handlers are available in different configurations depending on the device type, package format, and production volume being tested.
Gravity handlers use the weight of the device to move it through the test socket. Chips slide along a track into the socket, undergo testing, and then drop into the corresponding output bin. They are simple, reliable, and well-suited for high-volume testing of standard package types.
Pick-and-place handlers use a robotic arm to pick up each device individually, accurately place it into the test socket, and transfer it to the correct output tray after testing. This type provides higher placement accuracy and supports a wider range of package sizes and formats, including more delicate or irregularly shaped devices.
Strip handlers test devices while they remain in strip or panel format before being singulated into individual units. This approach is commonly used in certain memory and sensor applications, where strip-level testing can improve overall throughput efficiency.
Where the Handler Sits in the Back-End Flow
The handler operates at the final test stage, after the chip has been assembled, encapsulated, and marked. It represents the last automated step before devices are packaged and shipped.
Getting this stage right is critical. A handler that misaligns devices in the test socket can introduce contact errors, causing good chips to fail and defective chips to pass. Limited handler throughput can create bottlenecks that prevent the ATE system from reaching its full potential. Meanwhile, poor sorting accuracy can lead to binning errors that impact outgoing product quality.
What to Consider When Sourcing a Handler
Whether purchasing new equipment or evaluating pre-owned systems, several practical factors should be carefully considered:
· Package compatibility — Does the handler support the device package types used in your current and future product portfolio?
· Test socket interface — Is the handler compatible with the contactor and socket configuration required by your test program?
· Throughput rate — Does the handler’s units-per-hour capacity match or exceed the tester’s capability to avoid becoming a production bottleneck?
· Condition and wear parts — For pre-owned handlers, components such as pick-up tools, tracks, and contact areas experience the most wear and should be inspected carefully.
· Parts and service availability — Handlers rely on consumable components that require regular replacement. Easy access to spare parts and technical support locally or regionally is important for maintaining uptime.
