Memory Chip Packaging Equipment | High-Speed Die Bonder Solutions

Memory chip packaging accounts for over 70% of global semiconductors,with stacking technology being mainstream for FLASH chip packaging. Under the rapid development driven by the current Al boom, packaging capacity and stacking layers continue to increase.Therefore, memory chip packaging manufacturers strive to balance cost and yield, with UPH (Units Per Hour)being a core competitive indicator. Our memory chip packaging solutions are engineered for high-performance semiconductor manufacturing, supporting advanced packaging technologies such as HBM, DRAM, NAND, and multi-chip modules (MCP). With high-speed stacked die bonding, ultra-precision alignment, and ultra-thin chip handling capabilities, our systems deliver superior throughput, yield, and reliability for next-generation memory applications.

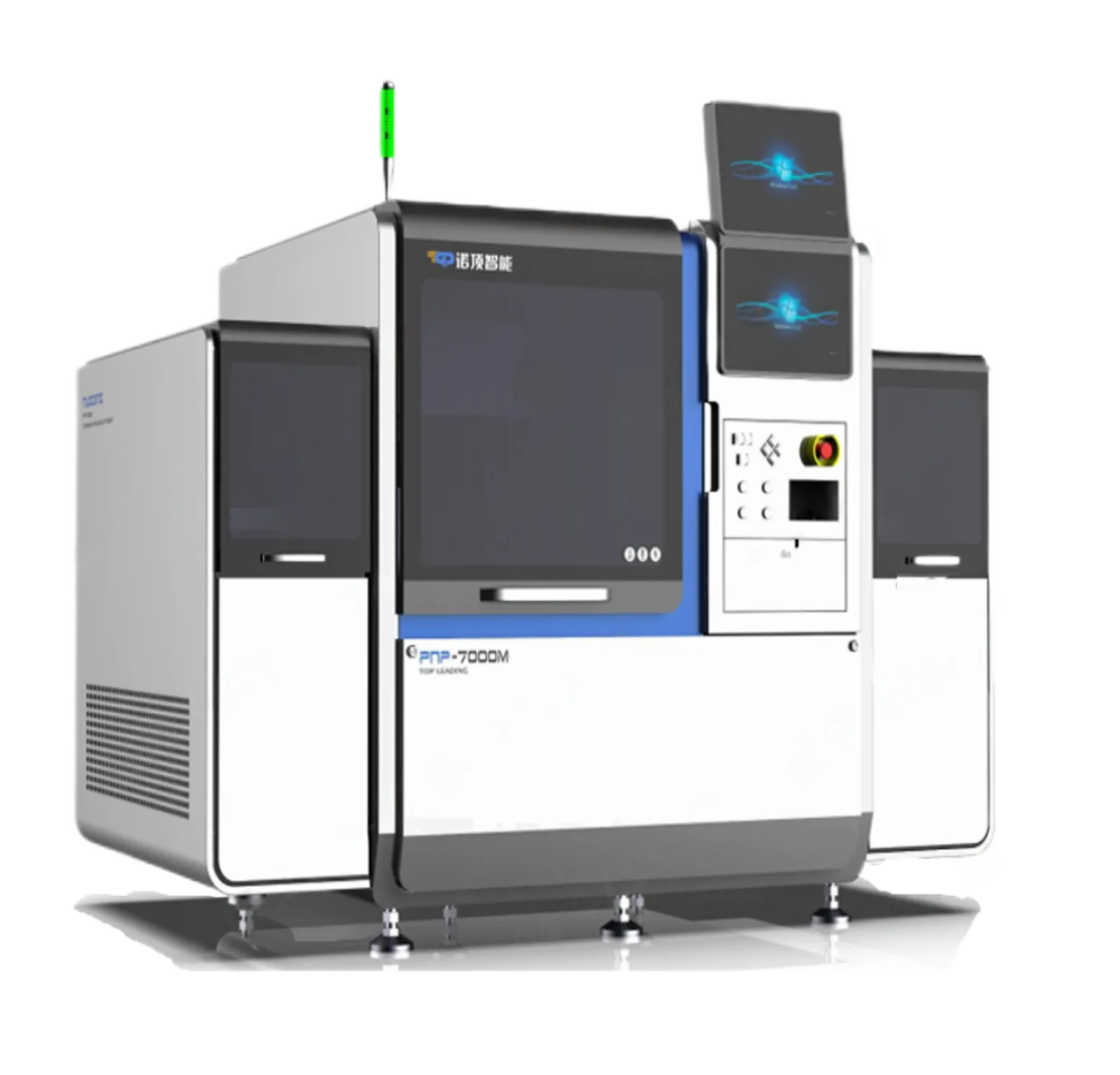

High-speed stacked chip die bonder PNP 7000M

1.Bonding precision: Decoupled suspension XYZ bonding platform design, global precision achievable ±7μm@3σ

2.Production efficiency: High-speed motion axis + high power consumption design, optimal efficiency can reach 7000CPH, with contact bonding time achieving effiency above 5000CPH

3.High precision pressure control: Compatible with 50g-5000g pressure control range,pressure accuracy can achieve +2g precision at low pressures

4.Self-developed multi-step reverse ejection system,capable of handling chips as thin as 25μm

5.High-efficiency clean-level particle detection and isolation design, ensuring production yield

6.Optional dispensing system (single or dual) and flip chip module for DDR6 packaging processes

7.Optional TRAY automatic loading system to improve production efficiency

Why Choose Our Memory Chip Packaging Solutions

Proven High Throughput

Optimize production efficiency with high UPH systems tailored for large-scale semiconductor manufacturing.

Precision Engineering

Advanced motion control and vision systems ensure consistent bonding accuracy.

Reliable for Mass Production

Designed for 24/7 industrial operation with stable performance and low defect rates.

Customizable Solutions

Flexible configurations to meet different packaging requirements across memory chip applications.

Get a Customized Memory Chip Packaging Solution

Looking for high-performance memory chip packaging equipment? Contact us today to get tailored solutions for your semiconductor production line.

What is memory chip packaging?

Memory chip packaging is the process of assembling semiconductor memory devices (such as DRAM, NAND, or HBM) into functional packages that protect the chip and enable electrical connections.

What is stacked die bonding in memory packaging?

Stacked die bonding refers to vertically stacking multiple chips to increase performance and density, commonly used in HBM and advanced memory technologies.

What equipment is used for memory chip packaging?

Typical equipment includes die bonders, flip chip bonders, wafer handling systems, and inspection equipment for high-precision semiconductor assembly.

Why is ultra-thin chip handling important?

Ultra-thin chips improve performance and integration density but require advanced handling technology to avoid damage during packaging.

Our memory chip packaging equipment is widely used in:

· Data centers and AI computing
· Consumer electronics
· Automotive electronics
· Industrial control systems
· High-performance computing (HPC)
