Compared to similar tri-temp handlers, the DMISM-1000T emphasizes desktop automation and temperature stability, making it ideal for lab and small-to-medium batch production environments.

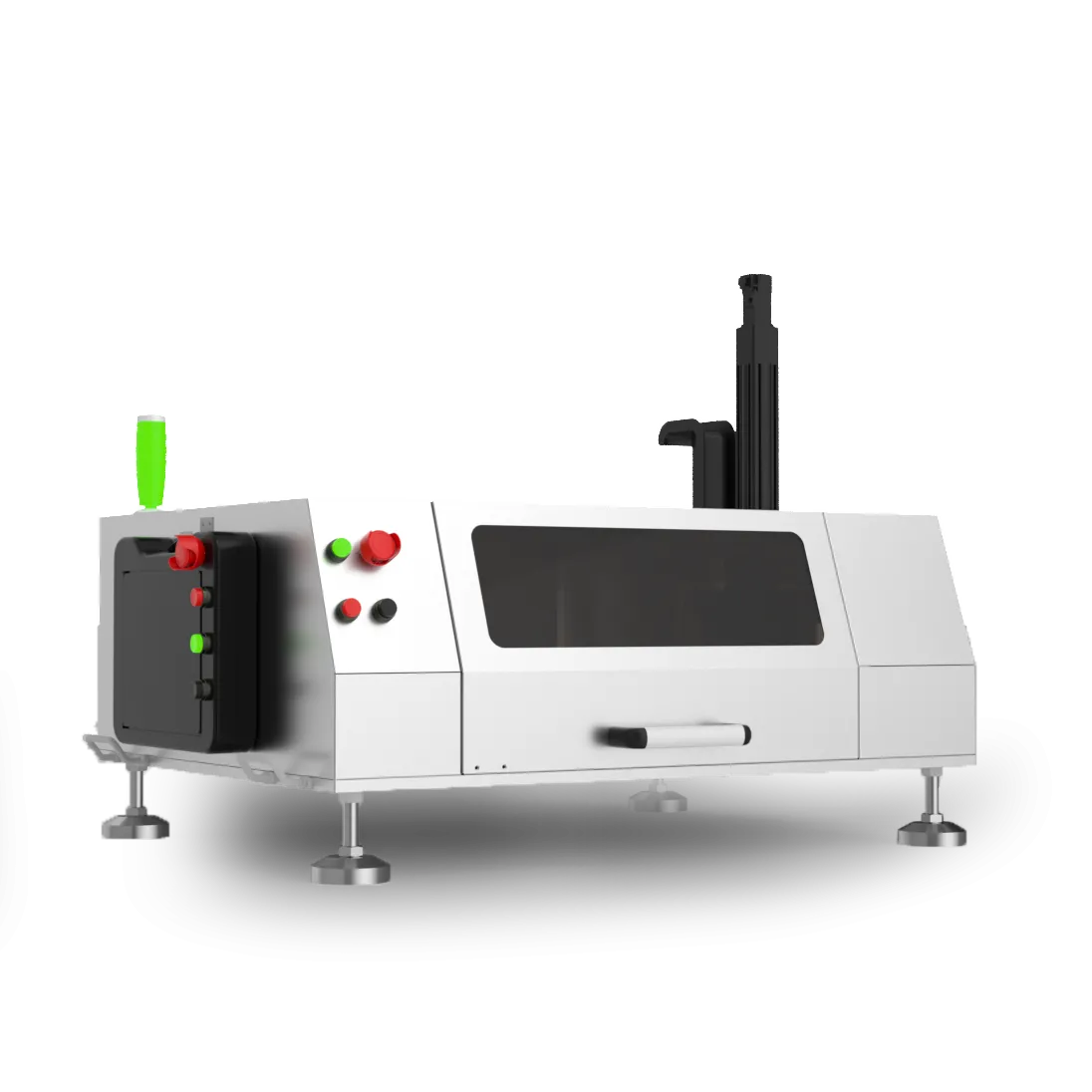

The Desktop Tri‑Temperature Handler DMISM-1000T is a tri-temperature test handler designed for semiconductor package testing, functional verification, and reliability assessment. It allows devices to undergo low, medium, and high temperature cycles, evaluating their performance and stability under extreme conditions.
This type of tri-temp handler is commonly used in engineering labs and production lines, especially for automotive electronics, industrial controllers, and power devices, where testing standards are strict and accuracy is critical.
Key Technical Features
1. Wide Temperature Range
The HLTM‑3000 supports a temperature range from ‑55°C to +125°C, covering standard low, medium, and high temperature test requirements. This allows devices to be reliably tested across real-world environmental extremes.
2. Automation & High Efficiency
Compared to manual testing, the HLTM‑3000 provides fully automated tri-temp testing, which:
· Significantly increases throughput and consistency;
· Reduces human errors;
· Handles batch sizes from 100 to 50,000 units efficiently.
3. Compatibility & Modular Support
The device is compatible with various test head configurations and can be integrated seamlessly with common ATE systems, workstations, and different package sizes (minimum 3×3 mm). Optional modules like code readers and vision alignment systems further enhance integration capabilities.
4. Precise Temperature Control & Condensation Prevention
Equipped with an active temperature control system combined with compressed dry gas circulation, the HLTM‑3000 effectively prevents condensation or icing during low-temperature tests. This ensures data accuracy and repeatability, which is critical for tri-temp testing.
5. Alignment & Jamming Reduction
The handler supports both mechanical and vision-based alignment, ensuring precise loading and extremely low jamming rates (<0.1%), reducing downtime and maintenance during large-scale operations.
Industry Advantages & Applications
Improves Test Efficiency & Consistency
Automated tri-temp testing increases throughput while maintaining highly repeatable results—essential for products with strict reliability requirements, such as automotive and industrial-grade devices.
Shortens Development-to-Production Cycle
By providing a standardized tri-temp testing platform, engineering teams can accelerate design verification and maintain high test throughput and yield in production.
Flexible Integration
The HLTM‑3000 can be integrated into existing test lines, working as an independent test station or part of an automated test unit.
Core Advantages:
1. Cost-Effective Automation: Replaces manual testing, improves throughput
2. Adaptable to various test head configurations
3. Active temperature control with compressed dry gas purge and circulation prevents low-temperature condensation during testing.
4. Alignment Options: Mechanical or vision-based correction
5. Optional Modules: Code reader and camera available
