In semiconductor packaging, automation is often treated as the obvious direction for every production line. Higher speed, fewer manual steps, better repeatability and stronger data control are all attractive advantages. However, in die bonding, the best choice is not always the highest level of automation. For many process engineers, packaging houses and product development teams, the real question is not “How much automation can we buy?” but “How much automation does this process really need?”
Die bonding is a critical step in advanced semiconductor packaging. It determines how accurately a chip is placed, how stable the bond interface is, and how consistently the package performs after downstream assembly. Whether the application involves optical modules, RF devices, power modules, memory chips, sensors, micro-modules or flip-chip packages, the die attach process must balance placement accuracy, bonding force, thermal control, adhesive dispensing, chip handling and production efficiency.
This is where the idea of “less is better” becomes important. Less does not mean low-end equipment or limited capability. It means choosing the right level of automation for the actual production stage, product type, process maturity and output requirement. A highly automated die bonder can deliver excellent value in mass production, but only when the process is stable enough to benefit from speed and repeatability. For early-stage development, high-mix production or frequent process changes, flexible automation may be more valuable than maximum throughput.
Why More Automation Is Not Always the Best Answer
In many semiconductor packaging projects, customers compare die bonders mainly by speed, UPH, placement accuracy and automation level. These are important factors, but they do not tell the whole story. A die bonding machine must be evaluated according to the entire process flow, including loading method, die source, substrate type, bonding material, alignment requirement, dispensing mode, heating condition, force control and changeover frequency.
A fully automated line can be highly efficient when the product design is fixed, the bonding recipe is mature, the incoming material format is consistent and production volume is high. In this situation, automation reduces manual handling, improves repeatability and supports stable output. However, when the product is still in development or when different devices must be processed on the same platform, excessive automation may increase setup complexity.
For example, a packaging team may need to evaluate several die sizes, substrate formats, adhesive types or bonding sequences before confirming the final process. If the equipment requires long teaching, complicated recipe building or repeated mechanical adjustment for each trial, the time saved by high-speed bonding may be lost during setup. In this case, a flexible die bonder with modular automation, fast changeover and accurate vision alignment can often deliver better practical efficiency.
The Real Decision: Process Flexibility vs. Maximum Throughput
Die bonding equipment should not be selected by throughput alone. A machine with extremely high speed may not be the best fit if the production line often handles small batches, multi-device packages or engineering samples. On the other hand, a process that has already entered stable mass production may require high-speed automatic die bonding to reduce cost per unit and maintain consistent quality.
Before choosing a die bonder, engineers should evaluate three questions:
· Is the bonding process already stable, or is it still being optimized?
· Does the line handle one product family or many product types?
· Is the main challenge speed, precision, process flexibility or yield stability?
If the product is still moving through prototyping, engineering validation or pilot production, flexibility is usually more important than maximum speed. If the process is mature and the output requirement is high, advanced automation becomes more valuable. For many manufacturers, the ideal solution is not “manual vs. automatic,” but a scalable automatic die bonder platform that can be configured according to process needs.
What a Modern Automatic Die Bonder Needs to Do
A modern automatic die bonder must handle much more than simple pick and place. Semiconductor packages are becoming smaller, thinner, denser and more process-sensitive. The equipment must support stable placement, accurate alignment, controlled bond force, compatible dispensing, reliable heating and safe handling of delicate chips.
For advanced packaging applications, the basic capability should include:
· High-precision XY and theta alignment
· Stable bonding force control
· Vision alignment for chip and substrate positioning
· Support for different die sources such as wafer ring, waffle pack, tray or carrier
· Compatibility with lead frames, ceramic substrates, PCBs, strips, boats or panels
· Dispensing, dipping, fluxing or eutectic process options
· Heating control for bond head, stage or process module
· Recipe management for repeatable production
· Flexible loading and unloading options
When these capabilities are built into a modular platform, the customer can choose the right automation level without overbuilding the line. This is especially important for manufacturers working with optical modules, RF/microwave modules, power devices, Mini/Micro LED, MEMS, sensors, stacked memory and flip-chip packaging.
When Flexible Automation Is Better
Flexible automation is often the best choice when the production environment requires both precision and adaptability. In these cases, the die bonder must support different processes without forcing the customer into a rigid production structure.
This type of requirement is common in R&D centers, pilot lines, engineering validation, small-to-medium production and high-mix semiconductor packaging. The equipment may need to process different chip sizes, various bonding materials and several substrate types. The team may also need to switch between adhesive bonding, silver paste dispensing, flux dipping, eutectic bonding or flip-chip bonding.

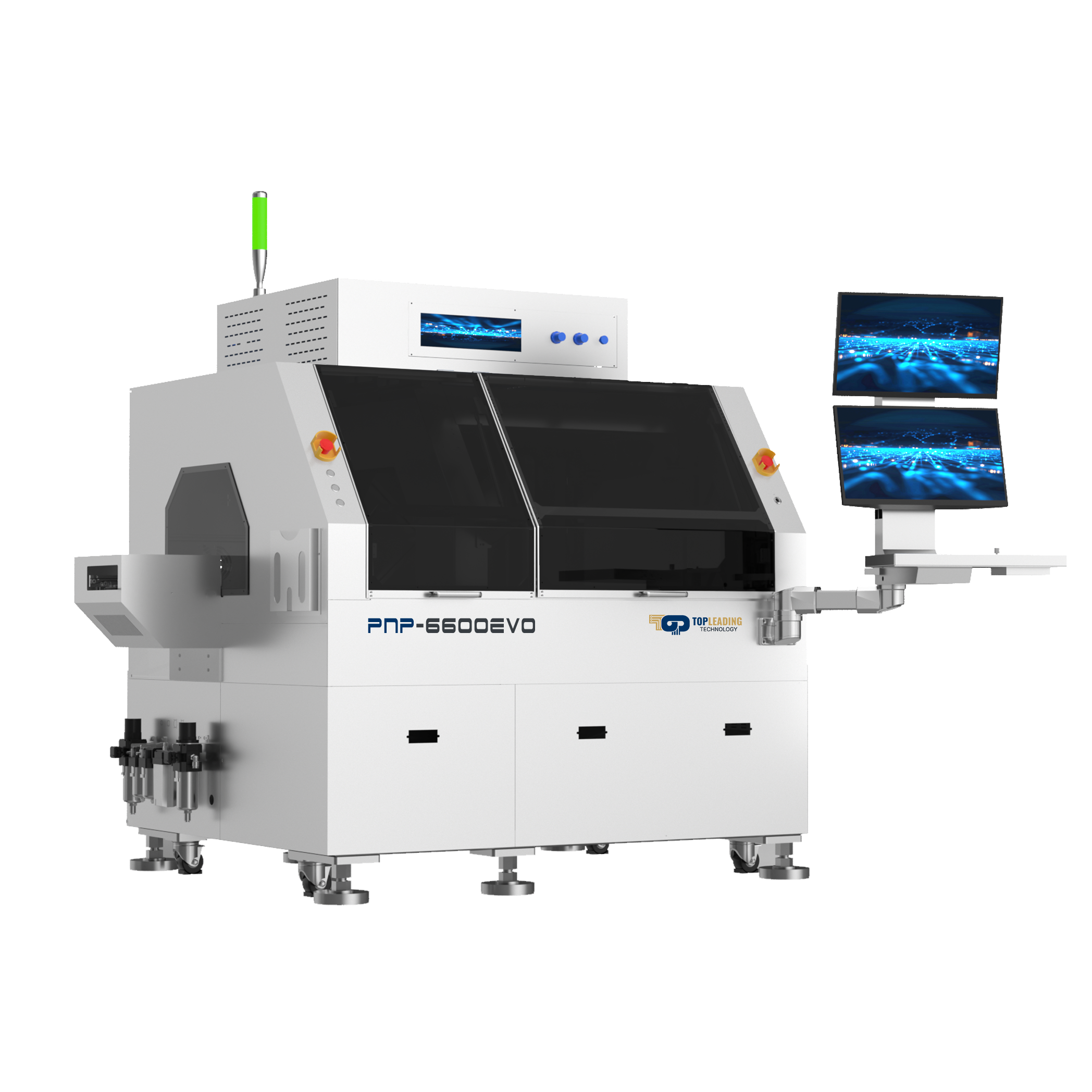

For these applications, Top-leading’s PNP6600 Series Multi-Functional & High-Precision Die Bonder is a strong example of controlled automation. It is designed for high-precision and multi-function die bonding, with configurations suitable for RF, microwave, optical modules, wafer-level placement and multi-chip packaging. The platform supports different adhesive materials such as epoxy and silver paste, and can be configured with dispensing, dipping and multi-stage bonding functions.
For customers who need accuracy, versatility and process development capability, a platform like PNP6600 helps avoid unnecessary complexity while still providing automatic die bonding performance. This is where “less is better” becomes a practical equipment strategy: instead of choosing the most automated configuration from the beginning, the customer can select the functions that match the current process and expand when production needs become clearer.
When High-Speed Automation Becomes Necessary
There are also many cases where more automation is not only useful, but necessary. Once the process is mature, output demand increases and yield stability becomes the priority, high-speed automatic die bonding becomes a key production advantage.
For memory chip manufacturing and stacked-die packaging, speed and precision must work together. The equipment must handle ultra-thin dies, multi-layer stacking, DAF processes and high-speed motion without damaging the chip or sacrificing placement accuracy. In this type of application, the PNP7000m/PNP7000mpro Series High-Speed Stacked Chip Die Bonder is designed for high-speed stacked die bonding in memory chips, including Flash, LPDDR, DDR and controller chip applications.
The value of automation here is not just faster movement. It is the ability to maintain repeatable die placement, reduce particle-related risk, control vibration, support face-up and flip-chip bonding, and handle demanding stacked-die processes. For manufacturers producing memory packages at scale, automation directly affects yield, cost per device and production stability.
Automation for Micro-Module and Optical Module Packaging
Micro-module packaging has different priorities from large-volume memory production. The process often requires stable accuracy, multiple process options and compatibility with compact devices. Optical modules, RF components, sensors, Mini/Micro LED and SiP packages may involve small chips, thin substrates and high-density alignment requirements.
For these applications, the PNP7000 LA Series High-Precision & Micro-Module Die Bonder is suitable for multi-process, high-precision and medium-to-high speed die bonding. It is designed for applications such as SiP, optical modules, RF/microwave components and Mini/Micro LED. The platform supports Uplook and Downlook vision positioning, optional flux spraying, flip-chip flux dipping, dispensing die bonding and eutectic bonding.
This is another example of choosing automation based on process reality. Micro-module production does not only need speed. It needs controlled placement, stable bonding force, flexible process modules and reliable alignment for small or complex components. A die bonder that is too narrowly optimized for only one production mode may limit process development. A flexible automatic platform gives engineers more room to adjust and optimize.
Automation for Flip-Chip Mass Production
Flip-chip packaging places very high demands on placement accuracy, process control and production throughput. When flip-chip reflow soldering, eutectic bonding or pre-sintering processes move into large-scale production, manual or low-speed bonding methods can no longer meet efficiency requirements.
For this stage, Top-leading’s FCB9900FC Series High-Speed Flip-Chip Die Bonder is designed for high-speed and high-precision flip-chip processes. Its dual-gantry and dual-bond-head structure supports high-volume production requirements, while maintaining precision for advanced packaging, AI computing chips, 5G communication devices, automotive electronics and memory chips.
In this situation, “less is better” does not mean using less automation. It means avoiding unnecessary process compromises. The equipment should be automated where automation truly improves output, accuracy and yield. For flip-chip mass production, integrated wafer loading, tray exchange, flux dipping, force control and calibration functions can reduce manual intervention and support stable long-term operation.
How to Choose the Right Level of Die Bonding Automation
A practical die bonder selection process should begin with the application, not the machine model. Different packaging processes require different levels of precision, force, heating, dispensing and throughput. A better selection method is to divide requirements into four stages.
1. Process Development
At the process development stage, the product design may still change. Engineers may test different die sizes, bonding materials, substrate types or heating profiles. The best die bonding equipment at this stage should offer easy process adjustment, stable alignment, reliable force control and flexible module configuration.
2. Engineering Validation
During validation, repeatability becomes more important. The machine must reproduce the same bonding results across multiple runs. Data consistency, recipe control, vision stability and material handling become key evaluation points.
3. Pilot Production
Pilot production requires a balance between flexibility and efficiency. The line may not need maximum throughput yet, but it must prove that the process can run continuously. Automatic loading, dispensing options, faster cycle time and stable bonding force may become more important.
4. Mass Production
In mass production, throughput, uptime and yield stability are critical. High-speed automatic die bonding, automatic material handling, calibration, compensation and process monitoring can directly improve production economics.
Key Factors Engineers Should Compare
When comparing automatic die bonders, buyers should avoid focusing on a single headline number. Placement accuracy and UPH are important, but they should be evaluated together with process adaptability and real production conditions.
| Selection Factor | Why It Matters |
| Placement Accuracy | Affects die-to-substrate alignment, package performance and process yield. |
| Bond Force Range | Important for thin chips, delicate dies, adhesive bonding and eutectic processes. |
| Throughput | Determines whether the equipment can support pilot production or mass production. |
| Supported Chip Size | Ensures compatibility with micro-chips, large dies, ultra-thin dies or stacked dies. |
| Substrate Compatibility | Important for lead frames, strips, carriers, ceramic substrates, PCBs, panels and wafers. |
| Dispensing and Flux Options | Supports epoxy, silver paste, flux dipping, spraying, eutectic bonding and other processes. |
| Vision Alignment | Determines positioning stability for high-density packages and small components. |
| Automation Level | Should match production maturity, product mix and output target. |
| Changeover Efficiency | Critical for high-mix production and frequent product changes. |
| Scalability | Allows the line to move from development to production without replacing the whole platform. |
The Best Die Bonder Is the One That Matches the Job
In die bonding, the most advanced machine is not always the most suitable machine. A high-speed flip-chip die bonder is ideal for mature mass production, but it may not be the best first choice for an engineering team still testing process conditions. A highly flexible multi-functional die bonder may be more valuable when the product mix is broad and the bonding process is still evolving.
The best equipment decision depends on the customer’s real production environment. If the main problem is process uncertainty, choose flexibility. If the main problem is output volume, choose speed. If the main problem is yield variation, choose stability, calibration and process control. If the line must support future expansion, choose a modular automatic die bonding platform that can grow with the process.
Top-leading Die Bonding Solutions for Different Automation Needs
Top-leading provides automatic die bonder solutions for different semiconductor packaging requirements, from flexible multi-process bonding to high-speed stacked die and flip-chip production. The product range includes:
PNP6600 Series Multi-Functional & High-Precision Die Bonder for high-precision, multi-function die bonding, RF/microwave, optical module, wafer-level and multi-chip applications.
PNP7000m/PNP7000mpro Series High-Speed Stacked Chip Die Bonder for memory chips, DAF multi-layer stacking, ultra-thin die handling and high-speed stacked-die production.
PNP7000 LA Series High-Precision & Micro-Module Die Bonder for SiP, optical modules, RF/microwave components, Mini/Micro LED, sensors and micro-module packaging.
FCB9900FC Series High-Speed Flip-Chip Die Bonder for flip-chip reflow soldering, eutectic bonding, pre-sintering and high-volume advanced packaging production.
Each application requires a different balance of precision, flexibility, speed and automation. By matching the die bonder configuration to the actual process stage, manufacturers can avoid unnecessary complexity while still building a scalable path toward higher productivity.
Conclusion
Automation in die bonding is not simply about using the fastest or most complex machine. It is about choosing automation that improves the process instead of complicating it. For early-stage development, flexible automation can reduce setup burden and support faster process learning. For high-volume production, advanced automatic die bonding can improve throughput, repeatability and yield stability.
When less is better, it means fewer unnecessary functions, less setup complexity and a more focused equipment configuration. When more is better, it means automation that directly supports mature production goals. The right die bonder should help engineers move from process development to stable production with confidence.
If you are evaluating die bonding equipment for advanced packaging, memory chips, optical modules, power devices, RF/microwave modules or flip-chip production, Top-leading can help you select the right automatic die bonder according to your process requirements, product format and production capacity target.
