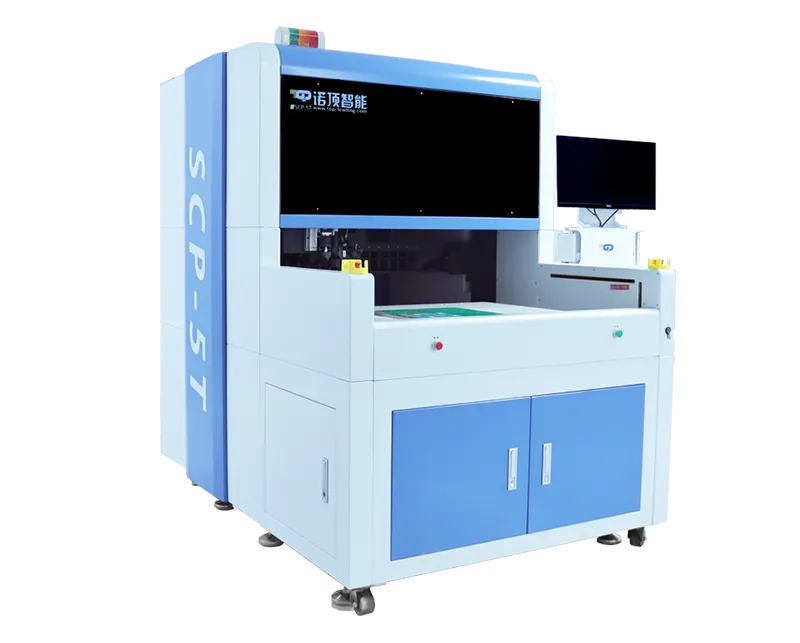

Automatic Press-Fit Machine — Precision, Speed, Reliability

Upgrade your production line with our Automatic Press-Fit Machine — engineered for repeatable, high-throughput press-fit insertion with industry-grade precision. Built for electronics and connector assembly where consistent force control, part integrity, and uptime matter, our Press Fit Machine combines servo-driven motion, integrated process monitoring, and flexible tooling to deliver fast cycle times and near-zero defect rates.

Our Automatic Press-Fit Machine performs controlled press-fit insertions and swaging operations with programmable force profiles, automatic head/tool changes, and optional vision alignment — ensuring every connector or component is seated correctly without board damage. It’s designed for both inline SMT/PCB lines and stand-alone automation cells.

Key features

• ·  Servo-controlled press with force-profile management for repeatable, measurable insertions and automatic reject on out-of-spec events.

• ·  High-precision positioning & optional vision guidance to align pins/connectors before press-fit, reducing cycle rework.

• ·  Multi-head / multi-station configurations available for high throughput (parallel insertion) or flexible one-off setups.

• ·  Smart process monitoring & data logging (SPC) — force/position traceability for quality control and process optimization.

• ·  Modular tooling and quick-change fixtures so the machine adapts fast to new connector types and board layouts.

• ·  User-friendly touchscreen HMI and PLC control with recipe management for fast line changeovers.

Benefits for your factory

• ·  Reduce defects & rework — precise force control and vision alignment protect expensive PCBs and components.

• ·  Increase throughput — configurable multi-head systems and fast cycle recipes maximize production yield.

• ·  Improve traceability & compliance — built-in logging and reject handling make audits and quality reporting simple.

• ·  Lower total cost of ownership — robust design, easy maintenance, and modular upgrades keep downtime low.

Applications

• ·  Press-fit connectors and wire-to-board terminals

• ·  PCB component insertion where controlled interference fit is required

• ·  High-volume connector assembly lines and contract manufacturing

• ·  R&D and pilot production where repeatability and data capture are essential

Why choose our Press Fit Machine

We combine proven press-fit mechanics with modern motion control and process intelligence to give manufacturers the balance of speed, accuracy, and adaptability they need. Whether you need a turnkey Automatic Press-Fit Machine for large volumes or a modular press-fit cell for flexible production, our Semiconductor Machines and Manufacturing solutions are customizable to your product, cycle time, and footprint requirements.
